Product Details

Description



Features:

 Low Quiescent Current, Low Distortion, Low Noise
 Low Shock Noise from Power ON/OFF Operation
 Minimum External Components

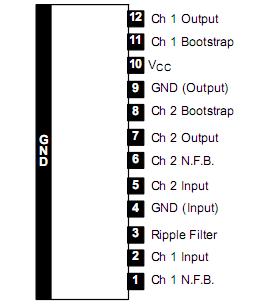

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4A
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.7W
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . 30°to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . 55° to +150°C


Description

The NTE7061 is a dual 5.3W (12V, 3Ω) power amplifier in a 12Lead SIP type package.  Dual amplifier circuits make stereo operation possible using one chip.  Low quiescent current makes the NTE7061 ideal for use in battery operated applications such as radio cassette recorders.
