NTE7060

Features: VIF Circuit using PLL Complete Synchronous DetectionAudio External Input Pin and Volume Adjusting Circuit BuiltInY Delay Line BuiltIn and Y Delay Line SwitchableBlock Level Compensation Circuit BuiltIn3.58MHz BPF BuiltInAPC Killer Filter BuiltIn (No Adjustment of ACP)OnScreen Pin Attache...

product image

NTE7060 Picture
See larger image
SeekIC No. : 004436472 Detail

NTE7060: Features: VIF Circuit using PLL Complete Synchronous DetectionAudio External Input Pin and Volume Adjusting Circuit BuiltInY Delay Line BuiltIn and Y Delay Line SwitchableBlock Level Compensation Ci...

NTE7060 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE7060
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 VIF Circuit using PLL Complete Synchronous Detection
 Audio External Input Pin and Volume Adjusting Circuit BuiltIn
 Y Delay Line BuiltIn and Y Delay Line Switchable
 Block Level Compensation Circuit BuiltIn
 3.58MHz BPF BuiltIn
 APC Killer Filter BuiltIn (No Adjustment of ACP)
 OnScreen Pin Attached (Only for Green and Other Output Blanking)
 Compatible with SVHS System (3.58MHz ON/OFF Switching)
 No Adjustment of Horizontal/Vertical Oscillation Frequency
 Horizontal Synchronous Lock Detecting Pin Attached
 Service Switch Circuit BuiltIn (Vertical Out Stop, Y Out Blanking)
 Y Output is Black Level when No Synchronous Signal is Input


Application

The NTE7060 is an integrated circuit in a 52Lead DIP type package that combines all of the signal (VIF, SIF, Video, Color and Synchronous Signal) processing circuits in NTSC color TV onto one chip.


Pinout

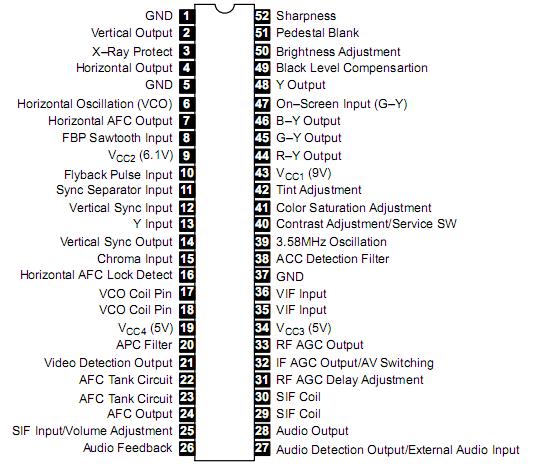

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82V
Supply Current (I43), ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30mA
Supply Current (I9), ICC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  61mA
Supply Current (I3219), ICC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   61mA
Power Dissipation (TA = +70°C), PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3mW
Operating Ambient Temperature Range, Topr  . . . . . . . . . . . . . . . . . . . . . . .  20° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   55° to +150°C
