Product Details

Description



Features:

  The Vertical PullIn Range is Approximately 20Hz at Vertical Sync 50Hz/60Hz.
  The Horizontal Oscillation Frequency can be Adjusted Stably from 15kHz to 100kHz.
  The Horizontal Display can be Shifted Right/Left.
  The Horizontal/Vertical Sync Input can be Used Intact Regardless of the Difference in Pulse Polarity and Pulse Width.
  The AFC Feedback Sawtooth Wave can be Obtained by Simply Applying a Flyback Pulse to the IC as a Trigger Pulse.
  Any Duty of the Horizontal Pulse can be Set.
  Good Vertical Linearity because DC Bias at Vertical Output Stage is Subjected to Sampling Control Within Retrace Time.

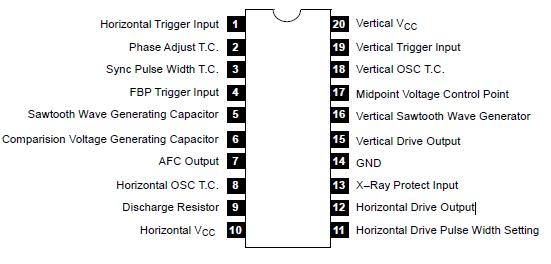

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage, V10, V20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14V
Allowable Power Dissipation (TA +65°C), Pdmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 780mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +85°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +125°C


Description

The NTE7062 is a sync deflection circuit in a 20Lead DIP type package. When used in combination with the NTE1773 or the NTE1797 (for vertical output use) this device forms a syncdeflection circuit that meets every requirement for CRT display use.

So far, ICs for color TV use have been applied to the syncdeflection circuit for CRT display use and general purpose ICs such as oneshot multivibrators, inverters, and a lot of transistors have been used to form the peripherals such as sync input interface, horizontal phase shifter. The NTE7062 contains these peripherals on chip and adopts a stable circuit for horizontal oscillation from 15kHz to 100kHz aiming at improving the characteristics required for CRT display use.
