Transistor Polarity
: N-Channel
Gate-Source Breakdown Voltage
: +/- 20 V
Mounting Style
: SMD/SMT
Packaging
: Reel
Drain-Source Breakdown Voltage
: 30 V
Maximum Operating Temperature
: + 150 C
Configuration
: Dual Dual Drain
Package / Case
: SOIC-8 Narrow
Resistance Drain-Source RDS (on)
: 0.035 Ohms
Continuous Drain Current
: +/- 5.3 A
Features: `5.3A, 30V. RDS(ON) = 0.035 @ VGS = 10V RDS(ON) = 0.05 @ VGS = 4.5V.
`High density cell design for extremely low RDS(ON).
`High power and current handling capability in a widely used surface mount package.

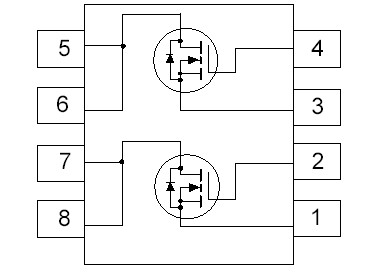

`Dual MOSFET in surface mount package.Pinout
Specifications
|
Symbol |
Parameter |
NDS8936 |
Units |
|
VDSS
VGSS |
Drain-Source Voltage
Gate-Source Voltage |
30
± 20
± 5.3
± 20
2
1.6
1
0.9
-55 to 150 |
V
V
A
W
°C |
|
ID |
Drain Current - Continuous
- Pulsed |
(Note 1a) |
|
PD |
Power Dissipation for Dual Operation |
| Power Dissipation for Single Operation |
(Note 1a)
(Note 1b)
(Note 1c) |
| TJ,TSTG |
Operating and Storage Temperature Range |
THERMAL CHARACTERISTICS
RJA
RJC |
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case |
(Note 1a)
(No |
DescriptionThese N-Channel enhancement mode power field effect transistors NDS8936 are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. NDS8936 is particularly suited for low voltage applications such as notebook computer power management and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.
Parameters: | Technical/Catalog Information | NDS8936 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 5.3A |
| Rds On (Max) @ Id, Vgs | 35 mOhm @ 5.3A, 10V |
| Input Capacitance (Ciss) @ Vds | 720pF @ 15V |
| Power - Max | 900mW |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 30nC @ 10V |
| Package / Case | SO-8 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NDS8936
NDS8936
NDS8936DKR ND
NDS8936DKRND
NDS8936DKR
|
NDS8936 Data Sheet
