M54125L

Features: `Satisfies JIS C 8371` Temperature-stable input current trigger threshold (VLKT = 9mV)`Capable of detecting a lost phase on the neutral line`Economical, low external component count` Highly resistant to noise and power surges`Wide operating temperature range (Ta = -20 +80°C)ApplicationH...

product image

M54125L Picture
See larger image
SeekIC No. : 004405696 Detail

M54125L: Features: `Satisfies JIS C 8371` Temperature-stable input current trigger threshold (VLKT = 9mV)`Capable of detecting a lost phase on the neutral line`Economical, low external component count` Highl...

M54125L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54125L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 `Satisfies JIS C 8371
 ` Temperature-stable input current trigger threshold (VLKT = 9mV)
 `Capable of detecting a lost phase on the neutral line
 `Economical, low external component count
 ` Highly resistant to noise and power surges
 `Wide operating temperature range (Ta = -20 +80°C)


Application

High-speed earth-leakage circuit breakers


Pinout

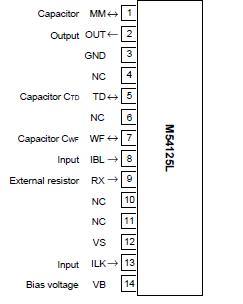

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
IS Supply voltage Average supply current frequency per cycle
0-6
mA
Is(SO) Supply surge current (Note 1)
0-12
mA
VILK ILK input voltage Pin VB serves as the voltage reference
-1.8-1.8
V
VIBL IBL input voltage
-0.3-6
V
VOUT OUT applied voltage When external voltage is applied
-0.3-4
V
Pd Power dissipation
160
mW
Topr Operating temperature
-20-80
°C
Tstg Storage temperature
-55-125
Note 1: Is(SG) current waveform, which is given in the following diagram, shall be one shot or less per minute.


Description

The M54125 is a semiconductor integrated circuit consisting of an amplifier for high-speed earth leakage circuit breaker.
