M54124L

Features: ` Satisfies JIS C 8371` Temperature-stable input current threshold` High-input sensitivity (VT = 6.5mV)` Low external component count` Highly resistant to noise and power surges` Low power dissipation (Pd = 5mW typ)` Can be used at 100V and 200V` High-density mounting eight-pin SIL packa...

product image

M54124L Picture
See larger image
SeekIC No. : 004405695 Detail

M54124L: Features: ` Satisfies JIS C 8371` Temperature-stable input current threshold` High-input sensitivity (VT = 6.5mV)` Low external component count` Highly resistant to noise and power surges` Low power...

M54124L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54124L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Satisfies JIS C 8371
` Temperature-stable input current threshold
` High-input sensitivity (VT = 6.5mV)
` Low external component count
` Highly resistant to noise and power surges
` Low power dissipation (Pd = 5mW typ)
` Can be used at 100V and 200V
` High-density mounting eight-pin SIL package
` Wide operating temperature range (Ta = -20 +80°C)


Application

High-speed earth-leakage circuit breakers


Pinout

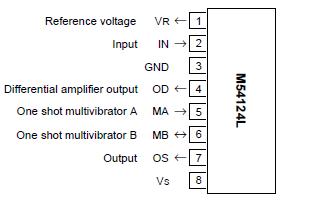

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Is
Supply voltage
8
mA
Is(SG)
Supply surge current
(Note 1)
12
mA
IIN
Input current
Between IN and VR (Note 2)
-250to+250
mA
IIG
Input pin current
Between VR and GND, and between
IN and GND
30
mA
VOD
OD applied voltage
When external voltage is applied
6
V
IMA
MA input current
When external voltage is applied
4
mA
VOS
OS applied voltage
When external voltage is applied
6
V
Pd
Power dissipation
200
mW
Topr
Operating temperature
-20-80
Tstg
Storage temperature
-55-125

Note 1: The surge waveform        The waveform of surge current IS(SG) is shown on the left. It is applied less than once per minute.

Note 2: Applies to currents between IN and VR with pulse widths less than 1ms and duty cycles less than 12%. If AC current is applied, the current limit is 100mArms when the IC supply power is off.

Remark: Circuit voltage at GND pin is 0V. Current flowing into the circuit is positive (no sign) and the current flowing out from the circuit is negative (negative sign), unless otherwise noted. Maximum values of rated and specified values are shown in absolute values.




Description

The M54124L is a semiconductor integrated circuit consisting of an amplifier for a high-speed earth-leakage circuit breaker.
