Product Details

Description

Features:

` Suitable for JIS C 8371
` Good temperature characteristics of input sensitivity current
` High input sensitivity (VT = 6.1mV Typ.)
` Low external component count
` High noise and surge-proof
` Low power dissipation (Pd = 5mW Typ.) and may be used both as 100V and 200V.
` High mounting density by SIL package with 8 pins
` Wide temperature range (Ta = -20 +80°C)

Application

High speed earth leakage circuit breaker

Pinout

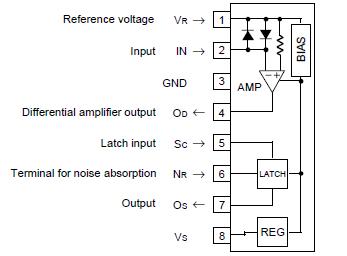

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
I_S	Supply current		8	mA
I_VR	VR terminal current	Between VR-IN (Note 1)	250	mA
		Between VR-GND	30
		Between IN-VR (Note 1)	-250
I_IN	IN terminal current	Between IN-VR (Note 1)	250	mA
		Between IN-GND	30
		Between VR-IN (Note 1)	-250
I_SC	Sc terminal current		5	mA
P_d	Power dissipation		200	mW
T_opr	Operating temperature		-20to80
T_stg	Storage temperature		-55to125

Description

The M54123L is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker.
