L6219DSA

Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor

product image

L6219DSA Picture
See larger image
SeekIC No. : 00534540 Detail

L6219DSA: Motor / Motion / Ignition Controllers & Drivers Dual Stepper Motor

L6219DSA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6219DSA
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Stepper Motor Controllers / Drivers Type : Driver
Operating Supply Voltage : 10 V to 46 V Supply Current : 0.01 A
Mounting Style : SMD/SMT Package / Case : SO-24
Packaging : Tube

Description

Mounting Style : SMD/SMT
Packaging : Tube
Product : Stepper Motor Controllers / Drivers
Type : Driver
Package / Case : SO-24
Supply Current : 0.01 A
Operating Supply Voltage : 10 V to 46 V


Pinout

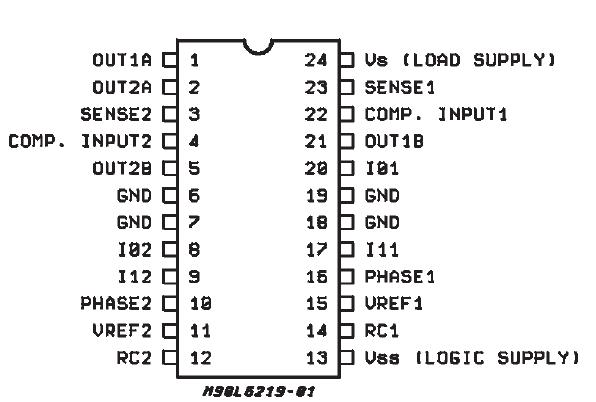

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VS
 Supply Voltage
50
V
Io
 Output Current (peak)
±1
A
Io
 Output Current (continuous)
±0.75
A
VSS
 Logic Supply Voltage
7
V
VIN
 Logic Input Voltage
-0.3 to 7
V
Vsense
 Sense Output Voltage
1.5
V
TJ
 Junction Temperature
+150
°C
Top
 Operating Temperature Range
-40 to +85
°C
Tstg
 Storage Temperature Range
-55 to +150
°C



Description

The L6219DSA is a bipolar monolithic integrated ircuits intended to control and drive both winding f a bipolar stepper motor or bidirectionally control wo DC motors.

The L6219DSA with a few external components orm a complete control and drive circuit for LSTTL r microprocessor controlled stepper motor ystem.

The power stage is a dual full bridge capable of ustaining 46V and including four diodes for current ecirculation.

A cross conduction protection is provided by the L6219DSAto to avoid imultaneous cross conduction during switching urrent direction.

An internal pulse-width-modulation (PWM) controls he output current to 750mA with peak startup urrent up to 1A.

Wide range of current control from 750mA (each ridge) is permitted by means of two logic inputs nd an external voltage reference. A phase input o each bridge determines the load current direction.  thermal protection circuitry disables the outputs f the chip temperature exceeds safe operating imits.




Parameters:

Technical/Catalog InformationL6219DSA
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
ApplicationsDC Motor Driver, Stepper Motor Driver
Number of Outputs2/1
Voltage - Supply4.75 V ~ 5.25 V
Voltage - Load10 V ~ 46 V
Current - Output±750mA
Operating Temperature-40°C ~ 125°C
Package / Case24-SOIC (7.5mm Width)
PackagingTube
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L6219DSA
L6219DSA
