Maximum RMS Reverse Voltage
:
Forward Continuous Current
:
Max Surge Current
:
Maximum Reverse Leakage Current
:
Power Dissipation
:
Product
: Single Phase Bridge
Mounting Style
: Through Hole
Packaging
: Tube
Height
: 3.3 mm
Peak Reverse Voltage
: 50 V
Forward Voltage Drop
: 1.2 V
Maximum Operating Temperature
: + 70 C
Width
: 6.35 mm
Length
: 19.18 mm
Package / Case
: PDIP-16

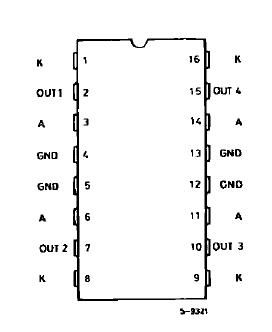

Pinout
Specifications
|
Symbol |
Parameter |
Value |
Unit |
|
If |
Repetitive Forward Current Peak |
2 |
A |
|
Vr |
Peak Reverse Voltage (per diode) |
50 |
V |
|
Tamb |
Operating Ambient Temperature |
70 |
oC |
|
Tstg |
Storage Temperature Range |
55to+150 |
oC |
DescriptionThe L6210is amonolithic ICcontainingeightSchottky diodes arranged as two separated diode bridges.
L6210 connectionmakes this device versatile in many applications.
Theyare usedparticular in bipolarsteppermotorapplications, where high efficient operation,due tolow forward voltagedrop andfast reverserecoverytime, are required.
The L6210 is available in a 16 Pin Powerdip Package (12 + 2 + 2) designedfor the 0 to 70xC ambient temperaturerange.
Parameters: | Technical/Catalog Information | L6210 |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Single Phase, Dual Schottky |
| Package / Case | 16-DIP (300 mil) |
| Packaging | Tube |
| Reverse Recovery Time (trr) | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - DC Forward (If) | 2A |
| Voltage - Peak Reverse (Max) | 50V |
| Mounting Type | Through Hole |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | L6210
L6210
497 3646 ND
4973646ND
497-3646
|
