KM641003C

Features: • Fast Access Time 12,15,20ns(Max.)• Low Power DissipationStandby (TTL) : 30mA(Max.) (CMOS) : 5mA(Max.) Operating KM641003C - 12 : 70mA(Max.) KM641003C - 15 : 68mA(Max.) KM641003C - 20 : 65mA(Max.)• Single 5.0V±10% Power Supply• TTL Compatible Inputs and Outputs&#...

product image

KM641003C Picture
See larger image
SeekIC No. : 004386148 Detail

KM641003C: Features: • Fast Access Time 12,15,20ns(Max.)• Low Power DissipationStandby (TTL) : 30mA(Max.) (CMOS) : 5mA(Max.) Operating KM641003C - 12 : 70mA(Max.) KM641003C - 15 : 68mA(Max.) KM6410...

KM641003C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KM641003C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast Access Time 12,15,20ns(Max.)
• Low Power DissipationStandby (TTL) : 30mA(Max.) (CMOS) : 5mA(Max.) Operating KM641003C - 12 : 70mA(Max.)
   KM641003C - 15 : 68mA(Max.)
   KM641003C - 20 : 65mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Device
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Standard Pin Configuration : KM641003CJ : 32-SOJ-400

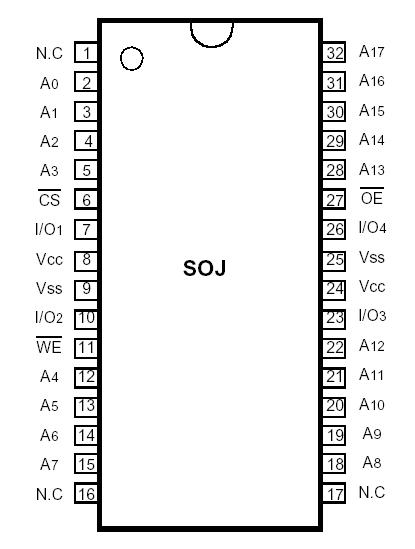

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit
Voltage on Any Pin Relative to VSS VIN, VOUT -0.5 to Vcc+0.5V V
Voltage on VCC Supply Relative to VSS VCC -0.5 to 7.0 V
Power Dissipation Pd 1 W
Storage Temperature TSTG -65 to 150 °C
Operating Temperature TA 0 to 70 °C

* Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The KM641003C is a 1,048,576-bit high-speed Static Random Access Memory organized as 262,144 words by 4 bits. TheKM641003C uses 4 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG¢s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The KM641003C is packaged in a 400 mil 32-pin plastic SOJ.
