HPMX-3002

Features: • RFIC Medium Power Amplifier• 150-960 MHz Operating Range• +22 dBm Typ. PldB , +23 dBm Typ. Psat @ 900 MHz• 50 dB Typ. Power Control Range • 6 V, 160 mA Operation• S0-8 Surface Mount Package with Improved HeatsinkingApplication• Driver Amplifier...

product image

HPMX-3002 Picture
SeekIC No. : 004365341 Detail

HPMX-3002: Features: • RFIC Medium Power Amplifier• 150-960 MHz Operating Range• +22 dBm Typ. PldB , +23 dBm Typ. Psat @ 900 MHz• 50 dB Typ. Power Control Range • 6 V, 160 mA Oper...

floor Price/Ceiling Price

Part Number:
HPMX-3002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• RFIC Medium Power Amplifier
• 150-960 MHz Operating Range
• +22 dBm Typ. PldB , +23 dBm Typ. Psat @ 900 MHz
• 50 dB Typ. Power Control Range
• 6 V, 160 mA Operation
• S0-8 Surface Mount Package with Improved Heatsinking



Application

• Driver Amplifier for GSM Cellular Handsets
• Driver or Output Stage for 900 MHz ISM Band Transmitters
• Driver or Output Stage for Transmitters Operating in the 150-960 MHz Range



Pinout

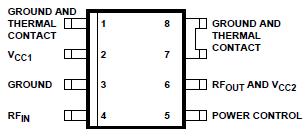

  Connection Diagram


Specifications

Symbol
Parameter
Units
Absolute
Maximum[1]
Pdiss
Power Dissipation [2,3]
mW
1400
Pin
Input Power
dBm
+5
VCC[1]
Supply Voltage
V
8
VCC [2]
Supply Voltage, 3rd Stage
V
12
Vcont
Control Voltage
V
5
Tj
Junction Temperature
150
TSTG
Storage Temperature
-65 to 150

Notes:
1. Operation of this device above any one of these parameters may cause permanent damage.
2. Tc = 25 °C (Tc is defined to be the temperature at the ends of pin 7 where it contacts the circuit board).
3. Derate at 15.2 mW/°C for TC > 58°C.




Description

Hewlett-Packard's HPMX-3002 is a silicon microwave monolithic integrated circuit driver amplifier housed in a S0-8 surface mount plastic package. It operates over the 150 - 960 MHz frequency range, and at 900 MHz it produces +23 dBm of saturated output power, has 30 dB of small signal gain and a 50 dB power control range. The amplifier has a wellmatched input, and an open collector output which provides good linearity and efficiency and is easy to externally match to 50 W for optimal power output.

This device HPMX-3002 is well suited as a driver amplifier for European GSM (Global System for Mobile communications) portable and mobile telephone systems, or as the output stage for other low cost applications such as 900 MHz ISM band spread-spectrum.

The HPMX-3002 is fabricated with Hewlett-Packard's 15 GHz ft ISOSAT-II process, which combines stepper lithography, ion implantation, self-alignment techniques, and gold metallization to produce RFICs with superior performance, uniformity and reliability .
