HPMX-2006

Features: • Wide Band Operation RF Output: 800-2500 MHz IF Input: DC-900 MHz• 2.7- 5.5 V Operation• Mixer + Amplifier: 38 mA Mixer only: 15 mA Standby Mode: <40 mA • Differential LO and High Impedance IF Inputs• -8.5 dBm Mixer and +4.5 dBm Amplifier Output Power at...

product image

HPMX-2006 Picture
SeekIC No. : 004365339 Detail

HPMX-2006: Features: • Wide Band Operation RF Output: 800-2500 MHz IF Input: DC-900 MHz• 2.7- 5.5 V Operation• Mixer + Amplifier: 38 mA Mixer only: 15 mA Standby Mode: <40 mA • Diffe...

floor Price/Ceiling Price

Part Number:
HPMX-2006
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Band Operation RF Output: 800-2500 MHz IF Input: DC-900 MHz
• 2.7- 5.5 V Operation
• Mixer + Amplifier: 38 mA Mixer only: 15 mA Standby Mode: <40 mA
• Differential LO and High Impedance IF Inputs
• -8.5 dBm Mixer and +4.5 dBm Amplifier Output Power at 1900 MHz
• JEDEC Standard SSOP-16 Surface Mount Package

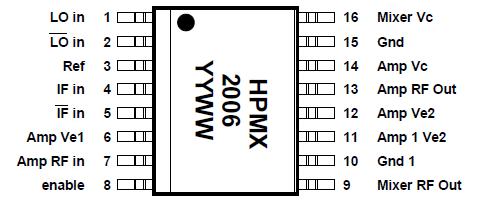

Pinout

  Connection Diagram


Specifications


Mixer
Amplifier
Symbol
Parameter
Units
Min.
Max.
Min.
Max.
VCC
Supply Voltage
V
-0.2
8
-0.2
8
Pdiss
Power Dissipation[2,3]
mW
174
274
Single-Ended Input Mixer LO Voltage
V
Vc+0.2
Single-Ended Input Mixer IF Voltage
V
Vc+0.2
Amplifier Input RF Power
dBm
+5
Tj
Junction Temperature
-40
+150
-40
+150
TSTG
Storage Temperature
-40
+150
-40
+150



Description

The HPMX-2006 upconverter/ amplifier IC is designed to meet the needs of cellular and PCS telephone and wireless LANapplications.

The HPMX-2006 consists of a Gilbert Cell mixer optimized for upconversion followed by a post-amplifier. The mixer and amplifier are independent allowing the insertion of a sideband filter between the two.

The HPMX-2006 mixer is double balanced. Both LO and IF inputs may be run either single-endedly, or in differential mode to reduce LO leakage. LO inputs are matchednear 50 W; high impedance IF inputs allow the mixer to be usedas a BPSK modulator. An integratedtransformer on the mixer RF port creates a single-ended, matched to 50 W output at1900 MHz, and also reduces common mode noise.

The amplifier features a singleended 50 W match on the input port. The open collector output is easily matched with a simple 2 element network, providing flexible use and good power added efficiency. The amplifier can be disabled to allow use of the mixer alone, reducing the current draw to around 15 mA. The entire IC can be put into a standby mode reducing current consumption to under 40 mA from a 3V source. The SSOP-16 package insures that HPMX-2006 occupies a minimal amount of printed circuit board space.

The HPMX-2006 is manufactured using Hewlett-Packard's 30 GHz ISOSAT-II process which combines stepper lithography, self alignment, ion implantation techniques and gold metalization to produce state-of-the-art RFICs.
