HPMX-2007

Features: • 5 MHz to 4 GHz Overall Operating Frequency Range• 40-400 MHz LOmod range• 2.7 - 5.5 V Operation (3 V, 25 mA)• Differential High Impedance i, q Inputs • On-Chip Linear RC Phase Shifter• -23 dBm Modulator S.E. Output Power into 50 W at 150 MHz• -...

product image

HPMX-2007 Picture
See larger image
SeekIC No. : 004365340 Detail

HPMX-2007: Features: • 5 MHz to 4 GHz Overall Operating Frequency Range• 40-400 MHz LOmod range• 2.7 - 5.5 V Operation (3 V, 25 mA)• Differential High Impedance i, q Inputs • On-C...

HPMX-2007 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HPMX-2007
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5 MHz to 4 GHz Overall Operating Frequency Range
• 40-400 MHz LOmod range
• 2.7 - 5.5 V Operation (3 V, 25 mA)
• Differential High Impedance i, q Inputs
• On-Chip Linear RC Phase Shifter
• -23 dBm Modulator S.E. Output Power into 50 W at 150 MHz
• -15 dBm Linear (-11 dBm Saturated) Mixer Output Power into 50 W at 1900 MHz
• Mixer Can Be Used for Up/Down Conversion or Disabled (3 V, 10 mA)
• Standby Mode (<1 mA)
• JEDEC Standard SSOP-16 Surface Mount Package


Application

• NADC, PDC, GSM Handsets and Base Stations
• PCS Handsets and Base Stations
• DLMR Handsets
• CDPD Radios
• ISM Band Wireless Links

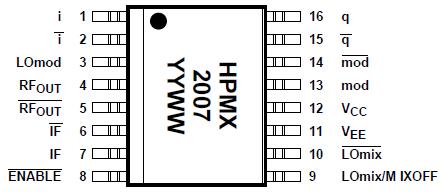

Pinout

Connection Diagram


Specifications

Recommended Operating Range of VCC = 2.7 to 5.5 V, TA = - 40 to +85°C.

Parameter Min. Max.
VCC Supply Voltage   8 V
Power Dissipation[2,3]   400 mW
RF Input Power   +15 dBm
Junction Temperature   +150°C
Storage Temperature -65°C +150°C

Notes:
1. Operation of this device in excess of any of these parameters may cause permanent damage.
2. Tcase = 25°C.
3. Derate at 7 mW/°C for Tcase > 90°C.


Description

The HPMX-2007 vector modulator/mixer IC is designed to meet the needs of cellular and PCS telephone applications.

The heart of HPMX-2007 is a vector (or quadrature) modulator followed by a Gilbert cell mixer. The modulator and mixer can be used together, drawing only 25 mA from a 3.0 volt supply. The mixer can be disabled by connecting either LOmix or LOmix to VCC, allowing operation of the modulator alone and reducing current drain to only 10 mA.

The i and q signal inputs of HPMX-2007 are balanced to insure high common mode noise rejection.

The output of the mixer HPMX-2007 is a differential pair of open collectors. One collector can be connected to VCC and the other matched to 50 W using a shunt L, series C network. Alternatively, the output can be matched to 50 W through a 4:1 balun.

The SSOP-16 package insures that the IC occupies a minimal amount of printed circuit board space.The HPMX-2007 is manufactured using Hewlett-Packard's 30 GHz ISOSAT-II process which combines stepper lithography, self alignment, ion implantation techniques and gold metallization to produce state-of-the-art RFICs.
