HPMX-2003

Features: • 8001000 MHz Output Frequency Range• +6 dBm Peak Pout• Unbalanced 50 W Output• Internal 90° Phase Shifter• 5 Volt, 36 mA Bias• SO-16 Surface Mount PackageApplication• Direct Modulator for 900 MHz Cellular Telephone Handsets, Including GSM, JDC, ...

product image

HPMX-2003 Picture
SeekIC No. : 004365337 Detail

HPMX-2003: Features: • 8001000 MHz Output Frequency Range• +6 dBm Peak Pout• Unbalanced 50 W Output• Internal 90° Phase Shifter• 5 Volt, 36 mA Bias• SO-16 Surface Mount Pack...

floor Price/Ceiling Price

Part Number:
HPMX-2003
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8001000 MHz Output Frequency Range
• +6 dBm Peak Pout
• Unbalanced 50 W Output
• Internal 90° Phase Shifter
• 5 Volt, 36 mA Bias
• SO-16 Surface Mount Package



Application

• Direct Modulator for 900 MHz Cellular Telephone Handsets, Including GSM, JDC, and NADC
• Direct Modulator for 900MHz ISM Band Spread- Spectrum Transmitters and LANs



Pinout

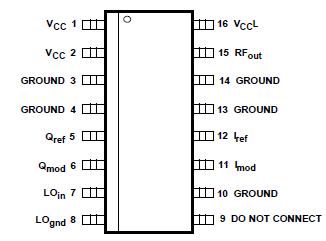

  Connection Diagram


Specifications

Symbol
Parameter
Units
Absolute
Maximum[1]
Pdiss
Power Dissipation [2,3]
mW
500
LOin
LO Input Power
dBm
15
VCC
Supply Voltage
V
10
VImod,VQmod
Swing of VImod about VIref
[4]or VQmod about VQref
Vp-p
5[4]
VIref, VQref
Reference Input Levels
V
5
TSTG
Storage Temperature
-65 to 150
Tj
Junction Temperature
150

Notes:
1. Operation of this device above any one of these parameters may cause permanent damage.
2. TC = 25°C (TC is defined to be the temperature at the end of pin 3 where it contacts the circuit board).
3. Derate at 8 mW/°C for TC > 88°C.
4. Do not exceed VCC by more than 0.8 V.




Description

Hewlett Packard's HPMX-2003 is a Silicon RFIC direct conversion vector modulator designed for use at output frequencies between 800 MHz and 1 GHz. Housed in a SO-16 surface mount plastic package, the IC contains two matched Gilbert cell mixers, an RC phase shifter, a summer, and an output amplifier complete with 50 W impedance match and DC block.

This device HPMX-2003 is suitable for use in direct and offset-loop modulated portable and mobile telephone handsets for cellular systems such as GSM, North American Digital Cellular and Japan Digital Cellular. It can also be used in digital transmitters operating in the 900 MHz ISM (Industrial-Scientific- Medical) band, including use in Local Area Networks (LANs).

The HPMX-2003 is fabricated with Hewlett-Packard's 25 GHz ISOSAT-II process, which combines stepper lithography, ion-implantation, self-alignment techniques, and gold metallization to produce RFICs with superior performance, uniformity and reliability.
