Edge649

Features: • 50 MHz Operation• 11 V DUT I/O Range• Programmable Output Levels• Programmable Input Thresholds• Per Pin Flexibility• High Integration Levels• 615 mW Quiescent Power Dissipation• Edge648 CompatibleApplication• Burn-In ATE• Fun...

product image

Edge649 Picture
See larger image
SeekIC No. : 004333835 Detail

Edge649: Features: • 50 MHz Operation• 11 V DUT I/O Range• Programmable Output Levels• Programmable Input Thresholds• Per Pin Flexibility• High Integration Levels• 6...

Edge649 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Edge649
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 50 MHz Operation
• 11 V DUT I/O Range
• Programmable Output Levels
• Programmable Input Thresholds
• Per Pin Flexibility
• High Integration Levels
• 615 mW Quiescent Power Dissipation
• Edge648 Compatible


Application

• Burn-In ATE
• Functional Board Testers
• In-Circuit Board Testers
• Combinational Board Testers
• Low Cost Chip Testers
• ASIC Verifiers
• VXI-Based Test Equipment

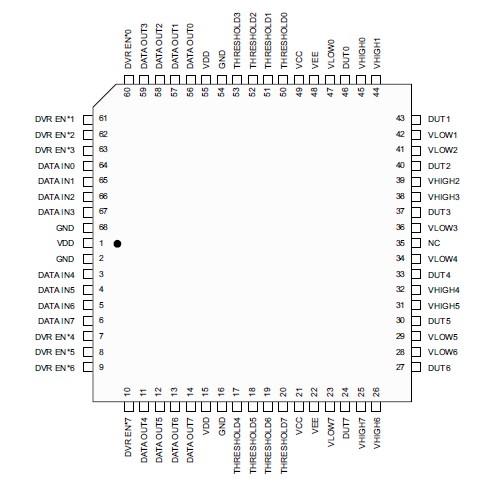

Pinout

Connection Diagram


Specifications

Parameter Symbol Min Typ Max Units
Total Analog Power Supply
Positive Analog Power Supply
Negative Analog Power Supply
Driver High Output Voltage
Driver Low Output Voltage
Driver Output Swing
Receiver Threshold Voltage
Digital Inputs
Digital Power Supply
Ambient Operating Temperature
Storage Temperature
Junction Temperature
Soldering Temperature

VCC - VEE
VCC
VEE
VHIGH
VLOW
VHIGH - VLOW
THRESHOLD
DATA IN
DVR EN*
VDD
TA
TS
TJ
TSOL

+5.0
-4.0
VEE - .5
VEE - .5
-5
VEE - .5
GND - .5
0
-55
-65



13
13
0.5
VCC + .5
VCC + .5
12
VCC + .5
VDD + .5
6.5
+125
+150
+150
260

V
V
V
V
V
V
V
V
V
oC
oC
oC
oC




Description

The Edge649 is an octal pin electronics driver and receiver combination fabricated in a high- performance CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, and power are all at a premium.

The Edge649 incorporates eight channels of programmable drivers and receivers into one package. Each channel has per pin driver levels, receiver threshold,and tristate control.

The 11V driver output and receiver input range allows the Edge649 to interface directly between TTL, ECL,CMOS (3V, 5V, and 8V), and custom level circuitry.
