Features: • Pin Compatible with the Edge646• 100 MHz Operation• 12V I/O Range• Programmable Output Levels• Flex In digital Inputs (Technology Independent)• Three Level Driver• Extremely Low Leakage Currents (~0 nA)• Small Footprint (32 Pin, 7 mm X 7 ...
Edge647: Features: • Pin Compatible with the Edge646• 100 MHz Operation• 12V I/O Range• Programmable Output Levels• Flex In digital Inputs (Technology Independent)• Three ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | Min | Typ | Max | Units |
Total Analog Power Supply Positive Analog Power Supply Negative Analog Power Supply Analog Input Voltages Digital Inputs Ambient Operating Temperature Storage Temperature Junction Temperature Soldering Temperature |
VCC - VEE |
0 |
13 |
V |

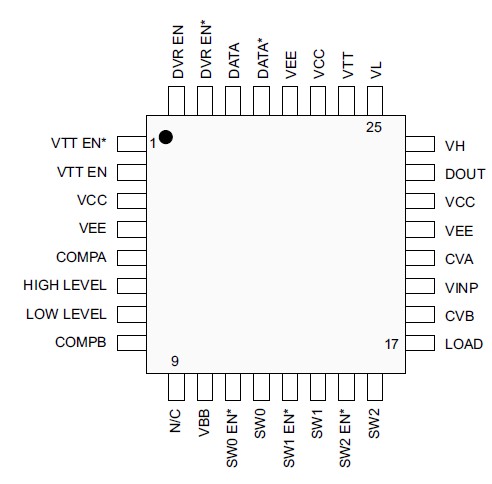

The Edge647 is an integrated trinary driver, window comparator, and switch matrix pin electronics solution manufactured in a wide voltage CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, and power are all at a premium.
The tristatable driver is capable of generating 3 levels - one for a logic high, one for a logic low, and one for either a termination voltage or a special programming voltage. The on-board window comparator effectively determines whether the DUT is in a high, low, or intermediate state. The switches are included to allow such functions as PMU, pull up, and pull down connections.
The Edge647 is intended to offer an extremely low leakage, low cost, low power, small footprint, per pin solution for 100 MHz and below pin electronics applications. It is a higher performance, pin and functionally compatible version of the Edge646.
