Features:

• 2 V/ns Driver Slew Rates
• Adjustable Driver Slew Rates
• Three Statable
• Low HiZ Leakage
• Low Voltage Driver Swings
• Low Overshoot Waveforms
• 12 V Output Range
• 9 V Output Swings
• 28-Pin PLCC with an Internal Heat Spreader
• Edge693 Compatible
• Bt692 Compatible


Application

• Memory Test Equipment
• Instrumentation


Pinout

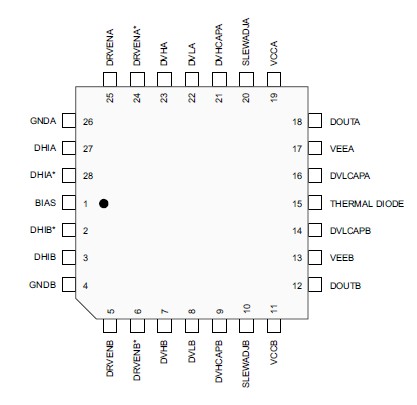

Connection Diagram


Specifications

Parameter Symbol Min Typ Max Units
VCC (Relative to GND)
VEE (Relative to GND
Total Power Supply
Digital Input Voltages
Differential Input Voltages
Analog Voltages
Analog Input Currents
Driver Bias
Slew Rate Adjust
Ambient Operating Temperature
Storage Temperature
Junction Temperature
Soldering Temperature
(5 seconds, 1/4" from pin)

VCC
VEE
VCC - VEE
DRVEN, DRVEN*
DHI, DHI*
DRVEN - DRVEN*
DHI - DHI*
DOUT, DVL, DVH
BIAS
SLEWADJA
SLEWADJB
TA
TS
TJ
TSOL

0
10.0
VEE
-5.0
VEE
0
0
0
-55
-65

+14.0
0
+20.0
+6.0
+5.0
VCC
2.6
2.8
2.8
+125
+150
+150
260

V
V
V
V
V
V
mA
mA
mA
oC
oC
oC
oC




Description

The Edge692 is a dual pin electronics driver manufactured in a high-performance, complementary bipolar process. In Automatic Test Equipment (ATE) applications, the Edge692 offers two pin drivers suitable for drive-only channels in memory testers, as well as for bidirectional channels in memory, VLSI, and mixed- signal test systems.

The Edge692 is designed to produce excellent waveforms (low overshoot), especially at low swings (<500 mV), and have extremely low leakage currents in HiZ mode. In addition, the Edge692 is pin and functionally compatible with both the Edge693 and the Bt692.

Each driver Edge692 is capable of forcing 9V signals over a 12V range, in addition to going into a high impedance state. The driver slew rate is adjustable between 2 V/ns and 1 V/ns.

Each driver Edge692 is completely isolated from the other. There are separate data, enable, slew rate adjust, high and low levels, as well as power supply inputs for each driver. Combining two independent drivers into a 28 pin PLCC package offers a highly integrated solution where speed and density are at a premium.
