Using LB1405 as DC power supply circuit diagram

Published:2011/4/26 3:14:00 Author:Rebekka | Keyword: DC power supply

Using LB1405 as DC power supply circuit diagram is shown as above. (View)

View full Circuit Diagram | Comments | Reading(1109)

Battery charging NC constant current source circuit diagram

Published:2011/4/26 3:02:00 Author:Rebekka | Keyword: Battery charging, NC constant current source

Battery charging NC constant current source circuit diagram

It is a numerical control constant current source designed for the charge of battery. D / A converter outputs a voltage to the bottom of the op amp inverting input, the circuit current I = Uad / sampling resistor, the two PORT are used to access the battery + and - poles. The magnification of the amplifier circuit is 1/4. It is used for measuring battery voltage. The 2 adjusted tubes are 3dd13 and 3dd15. (View)

View full Circuit Diagram | Comments | Reading(2046)

36V electric car battery charger circuit diagram

Published:2011/4/26 2:17:00 Author:Rebekka | Keyword: electric car , battery charger

36V electric car battery charger circuit diagram is shown as above. (View)

View full Circuit Diagram | Comments | Reading(9544)

±5--±20V slave tracking stabilized voltage supply minus side driven pulley plus side

Published:2011/4/2 1:55:00 Author:may | Keyword: ±5--±20V, slave tracking, stabilized voltage supply, minus side driven pulley plus side

±5--±20V slave tracking stabilized voltage supply minus side driven pulley plus side
(View)

View full Circuit Diagram | Comments | Reading(790)

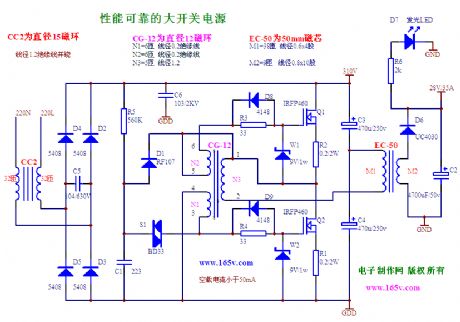

High power switching power supply circuit diagram with reliable performance

Published:2011/4/20 20:13:00 Author:May | Keyword: High power, switching power supply, reliable performance

High power switching power supply circuit diagram with reliable performance
(View)

View full Circuit Diagram | Comments | Reading(3124)

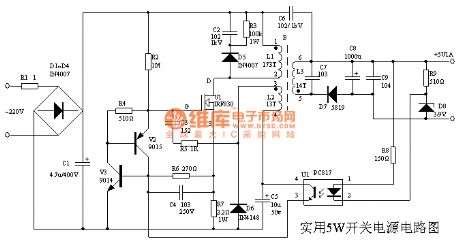

Latest practical 5W switching power supply circuit

Published:2011/4/20 20:23:00 Author:May | Keyword: Latest, practical, 5W, switching power supply

Latest practical 5W switching power supply circuit
(View)

View full Circuit Diagram | Comments | Reading(3132)

Super-audio frequency induction heating power supply

Published:2011/4/25 2:43:00 Author:May | Keyword: Super-audio frequency induction, heating power supply

Super-audio frequency induction heating power supply
(View)

View full Circuit Diagram | Comments | Reading(1740)

Single-ended forward transform isolation type switching regulated power supply circuit produced by Cwl524A

Published:2011/4/22 4:10:00 Author:May | Keyword: Single-ended, forward transform isolation type, switching regulated power supply

Single-ended forward transform isolation type switching regulated power supply circuit produced by Cwl524A
(View)

View full Circuit Diagram | Comments | Reading(681)

Single-ended fly back switching regulated power supply circuit composed of CW1524

Published:2011/4/22 6:47:00 Author:May | Keyword: Single-ended, fly back, switching, regulated power supply

Single-ended fly back switching regulated power supply circuit composed of CW1524
(View)

View full Circuit Diagram | Comments | Reading(575)

Step-down chopper type switching power supply circuit composed of CWl524A

Published:2011/4/22 4:15:00 Author:May | Keyword: Step-down chopper type, switching power supply

Step-down chopper type switching power supply circuit composed of CWl524A
(View)

View full Circuit Diagram | Comments | Reading(1448)

Half bridge type switching regulated power supply circuit composed of CWl524

Published:2011/4/22 4:19:00 Author:May | Keyword: Half bridge type, switching regulated power supply

Half bridge type switching regulated power supply circuit composed of CWl524
(View)

View full Circuit Diagram | Comments | Reading(543)

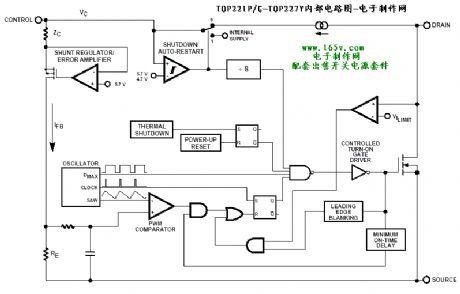

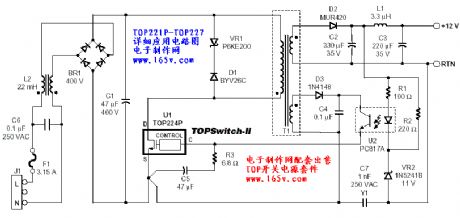

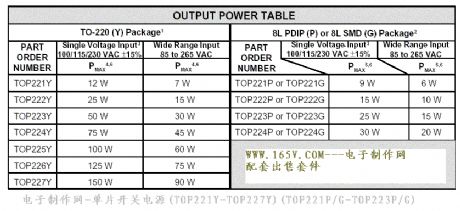

Application circuit of single chip switching power supply TOP221-TOP227

Published:2011/4/21 1:05:00 Author:May | Keyword: single chip, switching power supply

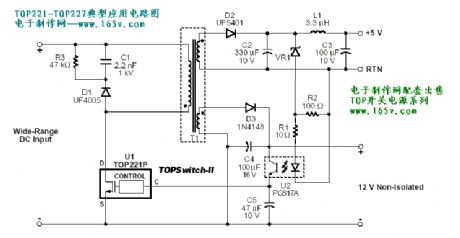

Application circuit of single chip switching power supply TOP221-TOP227

(View)

View full Circuit Diagram | Comments | Reading(7782)

MAX8819 Application Circuit

Published:2011/4/22 5:12:00 Author:Robert | Keyword: Application

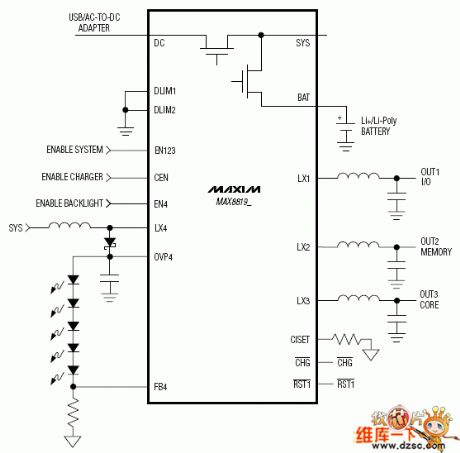

MAX8819 Application Circuit is shown below: (View)

View full Circuit Diagram | Comments | Reading(574)

Mining Light Circuit

Published:2011/4/22 4:29:00 Author:Christina | Keyword: Mining Light

Mining Light Circuit

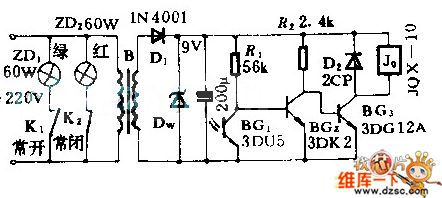

The pilot lamp which is installed in scene can helps the driver to determine the situation behind car. The phototransistor is used as optical signal sensor, when light shines on the photodiodor, relay J0 closes and one of the normal-open contact close too, if the green light open, it means that there is no obstacle behind car. If there are some obstacles block the light, relay J0 does not close, red light opens. (View)

View full Circuit Diagram | Comments | Reading(532)

Composed of BIC1222 DC converter circuit diagram

Published:2011/4/25 5:01:00 Author:Rebekka | Keyword: DC converter

Composed of BIC1222 DC converter circuit diagram

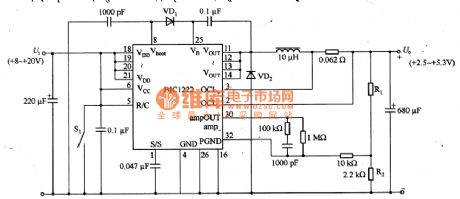

Figure 22 is a DC converter circuit constituted by the BIC1222. BIC1222 has two synchronous rectifier power MOSFET, the control circuit, over-current protection circuit and thermal protection circuit module. It has on and off function. The circuit's input voltage is +8 ~ +20 V, output voltage is + 2.5 ~ +5.3 V, output current is 5A. The output voltage is setted by external resistors R1 and R2 in the range of +2.5 ~ +12 V. Output voltage U. = [2.45V (R1 +2 R)] / R2. In the circuit, R2 = 2.2KΩ, U. = 2.5V, R1 = 47Ω; U. 3.3V, R1 = 770Ω; U. 5.0V, R1 = 2.3KΩ. (View)

View full Circuit Diagram | Comments | Reading(735)

The Battery Charging Application Circuit composed of Wll7／W217／W317

Published:2011/4/22 1:51:00 Author:Crystal Liu | Keyword: battery application, circuit

The Battery Charging Application Circuit composed of Wll7／W217／W317

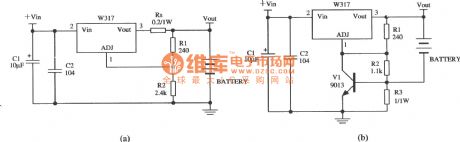

Thefigure shows a battery application circuit consists of three terminal control integrated circuit.Figure (a) shows a circuit of charger with constant pressure and Current limiting,among them the Rs is used to limit current,Lower initial charge rate;Figure(b) shows a charger circuit of limiting current,among them ,the resistance R3 and thetransistorare used to limit maximum charge current. (View)
