The VN540, VN540SP, VN540(011Y),VN540(012Y) is a monolithic device designed in STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active current limitation avoids the system power supply dropping in case of shorted load. Built-in thermal shut down protects the chip from over temperature. The open drain diagnostic output indicates over temperature conditions.
VN540 Maximum Ratings
Symbol
Parameter
Value
Unit
VCC
Power supply voltage
45
V
-VCC
Reverse Supply Voltage
-4.0
V
IOUT
Maximum DC load current
Internally Limited
A
IR
Reverse Output Current
-10
A
IIN
Input Current
+/- 10
mA
ISTAT
Status pin current
+/- 10
mA
VESD
Electrostatic Discharge (R=1.5K; C=100pF)
2000
V
PTOT
Power dissipation at Tc=25°C
Internally limited
W
Tj
Junction operating temperature
Internally Limited
TSTG
Storage Temperature
-55 to 150
EAS
Single pulse avalanche energy
500
mJ
VN540-12-E Parameters
Technical/Catalog Information

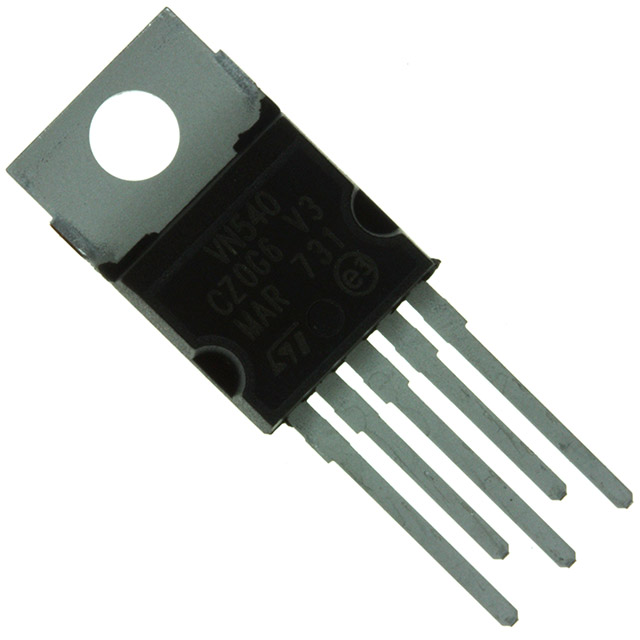

VN540-12-E
Vendor
STMicroelectronics
Category
Integrated Circuits (ICs)
Package / Case
Pentawatt-5 (Straight Leads, Staggered Depth)
Mounting Type
Through Hole
Type
High Side
Voltage - Supply
10 V ~ 36 V
On-State Resistance
50 mOhm
Current - Output / Channel
2.8A
Current - Peak Output
4A
Packaging
Tube
Input Type
Non-Inverting
Number of Outputs
1
Operating Temperature
-25°C ~ 85°C
Drawing Number
*
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
VN540 12 E VN54012E 497 6167 5 ND 49761675ND 497-6167-5
VN540-12-E General Description
The VN540-E, VN540SP-E, VN540-12-E are monolithic devices designed in STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active current limitation avoids the system power supply dropping in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature. The open drain diagnostic output indicates overtemperature conditions.
VN540-12-E Maximum Ratings
Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
0.3
MA
DC reverse ground pin current
-IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
24
mA
DC input current
IIN
-1 to 10
mA
DC current sense disable input current
ICSD
-1 to 10
Current sense maximum voltage
-ICSENSE
VCC - 41 to +VCC
°C/W
Single pulse avalanche energy
VCSENSE
500
mJ
VN540-12-E Features
OUTPUT CURRENT (CONTINUOUS) : 2.8A DIGITAL INPUT CLAMPED AT 32V PROTECTION AGAINST: LOSS OF GROUND SHORTED LOAD AND OVERTEMPERATURE BUILT-IN CURRENT LIMITER UNDERVOLTAGE SHUT-DOWN OPEN DRAIN DIAGNOSTIC OUTPUT FAST DEMAGNETIZATION OF INDUCTIVE LOADS
