VN5050AJ-E

Power Driver ICs Sngl Ch HiSide Drivr

product image

VN5050AJ-E Picture
See larger image
SeekIC No. : 00538591 Detail

VN5050AJ-E: Power Driver ICs Sngl Ch HiSide Drivr

VN5050AJ-E Data Sheet

floor Price/Ceiling Price

US $ .53~.62 / Piece | Get Latest Price
Part Number:
VN5050AJ-E
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1380
  • 1380~2000
  • 2000~5000
  • 5000~10000
  • Unit Price
  • $.62
  • $.57
  • $.55
  • $.53
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : High Side Supply Voltage - Min : 4.5 V
Supply Current : 3 mA Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Packaging : Tube

Description

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Maximum Power Dissipation :
Package / Case :
Mounting Style : SMD/SMT
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 150 C
Type : High Side
Supply Current : 3 mA


Features:

Bias Voltage Range (Port Vdd)
+7.0 Vdc
Control Voltage Range (A & B)
-0.5V to Vdd +1 Vdc
Storage Temperature
-65 to +150 °C
Operating Temperature
-40 to +85 °C
Maximum Input Power
Vdd = +5 Vdc
+20 dBm (0.05 - 0.5 GHz)
+27 dBm (0.5 - 3.5 GHz)

General features
Inrush current active management by
power limitation
Very low stand-by current
3.0V CMOS compatible input
Optimized electromagnetic emission
Very low electromagnetic susceptibility
In compliance with the 2002/95/EC
European directive
Diagnostic functions
Proportional load current sense
High current sense precision for wide range
currents
Current sense disable
Thermal shutdown indication
Very low current sense leakage
Protection
Undervoltage shut-down
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Protection against loss of ground and loss of VCC
Thermal shut down


Application

All types of resistive, inductive and capacitive oads
Suitable as LED driver

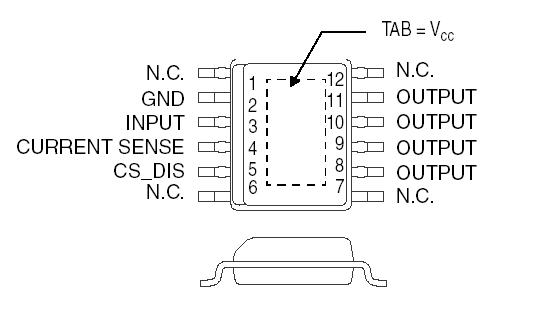

Pinout

Connection Diagram


Specifications

Stressing the device above the rating listed in the "Absolute maximum ratings" table may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to the conditions in table below for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality document.

Parameter
Symbol
Value
Units
DC supply voltage
VCC
41
V
Reverse DC supply voltage
VC
-0.3
MA
DC reverse ground pin current
 -IGND
200
A
DC output current
IOUT
Internally limited
mA
Reverse DC output current
- IOUT
30
mA
DC input current

IIN
-1 to 10
mA
DC current sense disable input current
ICSD
-1 to 10
DC Reverse CS pin current
-ICSENSE
200
°C/W
Current sense maximum voltage
VCSENSE
VCC-41
+VCC
V
Maximum switching energy (single pulse)
L= 3mH; RL=0Ω; Vbat=13.5V; Tjstart=150ºC; IOUT = IlimL(Typ.) )
VESD
104
H



Description

The VN5050AJ-E is a monolithic device made using STMicroelectronics VIPower technology. VN5050AJ-E is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open.

When CS_DIS is driven high, the CURRENT SENSE pin is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long overload duration, the VN5050AJ-E device limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears.




Parameters:

Technical/Catalog InformationVN5050AJ-E
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CasePowerSSO-12
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply4.5 V ~ 36 V
On-State Resistance50 mOhm
Current - Output / Channel-
Current - Peak Output16.5A
PackagingTube
Input TypeNon-Inverting
Number of Outputs1
Operating Temperature-40°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN5050AJ E
VN5050AJE
