Datasheet: UPG2024TQ
File Size: 560431 KB
Manufacturer: CEL [California Eastern Labs]
Download : Click here to Download
UPG2024TQ General Description
NEC's UPG2024TQ is a GaAs MMIC DPDT switch for 5 GHz band wireless LAN. Low insertion loss and high handling power contribute to user's system design.
UPG2024TQ Maximum Ratings
UPG2024TQ Features

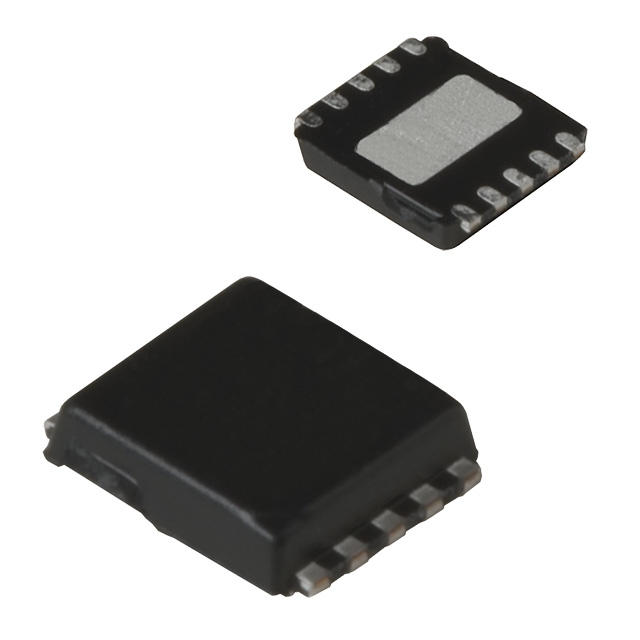

• OPERATING FREQUENCY: f = 4.8 to 5.85 GHz • LOW INSERTION LOSS: LINS = 1.2 dB TYP. @ f = 4.8 to 5.85 GHz • HANDLING POWER: Pin (0.1 dB) = +32 dBm TYP. @ f = 4.8 to 5.85 GHz • CONTROL VOLTAGE: Vcont = +2.8 V/0 V TYP. • HIGH ISOLATION: ISL (between TX and RX) = 30 dB TYP. @ f = 5.2 GHz ISL (between ANT1/ANT2 and RX/TX) = 25 dB TYP. @ f = 5.2 GHz • INPUT/OUTPUT RETURN LOSS: RLin/RLout = 20 dB TYP. @ f= 4.8 to 5.85 GHz • SWITCHING SPEED: tSW = 20 ns TYP. @ tRISE/tFALL (10/90% RF) • HIGH-DENSITY SURFACE MOUNTING: 10-pin plastic TSON package (2.30 × 2.55 × 0.60 mm) • Pb FREE
UPG2024TQ Typical Application
• 5 GHz Band Wireless LAN (IEEE802.11a)
UPG2024TQ Connection Diagram
