UMH14 N TR, UMH14N, UMH14NTR

Table of contents:
Info of UMH14 N TR
Info of UMH14N
Info of UMH14NTR

UMH14 N TR, UMH14N, UMH14NTR Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT-363 D/C:09+

UMH14 N TR, UMH14N, UMH14NTR Datasheet download

Five Points

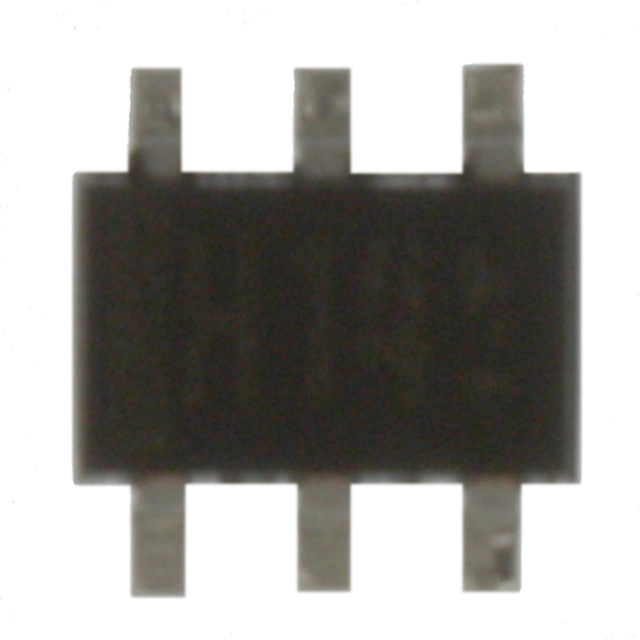

Part Number: UMH14NTR

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT-363

D/C: 09+

Description: TRANS DUAL NPN 50V 100MA SOT-363

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UMH14N Maximum Ratings

Parameter		Symbol	Limits	Unit
Collector-base voltage		VCBO	50	V
Collector-emitter voltage		VCEO	50	V
Emitter-base voltage		VEBO	5	V
Collector current		IC	500	mA
Collector power dissipation	EMG6/UMG6N/UMH14N	PC	150(TOTAL)	mW
Collector power dissipation	FMG6A/IMH14A/IMH15A	PC	300(TOTAL)	mW
Junction temperature		Tj	150	°C
Storage temperature		Tstg	-55~+150	°C

UMH14N Features

Two DTC114T chips in a EMT or UMT or SMT package.

UMH14NTR Parameters

Technical/Catalog Information	UMH14NTR
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	2 NPN - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	150mW
Resistor - Base (R1) (Ohms)	47K
Resistor - Emitter Base (R2) (Ohms)	-
Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UMH14NTR UMH14NTR UMH14NDKR ND UMH14NDKRND UMH14NDKR
