UMH10/H10, UMH10N, UMH10NTN

Table of contents:
Info of UMH10/H10
Info of UMH10N
Info of UMH10NTN

UMH10/H10, UMH10N, UMH10NTN Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT-363 D/C:09+

UMH10/H10, UMH10N, UMH10NTN Datasheet download

Five Points

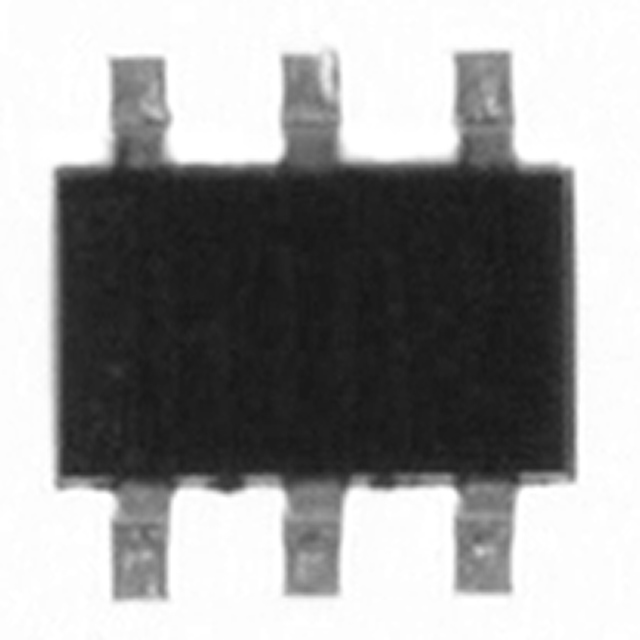

Part Number: UMH10NTN

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT-363

D/C: 09+

Description: TRANS DUAL NPN 50V 100MA SOT-363

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UMH10N Maximum Ratings

Paramete		Symbo	Limits	Unit
Supply voltage		VCC	50	V
Input voltage		VIN	12	V
			-5
Output current		IO	100	mA
		Ic(Max)	100
Power dissipation	EMH10,UMH10N	Pd	150(TOTAL)	mW
	IMH10A		300(TOTAL)
Storage temperature		TSTG	-55~+150

UMH10N Features

1) Two DTC123J chips in a EMT or UMT or SMT package.
2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.
3) Transistor elements are independent, eliminating interference.
4) Mounting cost and area can be cut in half.

UMH10NTN Parameters

Technical/Catalog Information	UMH10NTN
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	2 NPN - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	150mW
Resistor - Base (R1) (Ohms)	2.2K
Resistor - Emitter Base (R2) (Ohms)	47K
Vce Saturation (Max) @ Ib, Ic	300mV @ 250A, 5mA
Current - Collector Cutoff (Max)	500nA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V
Frequency - Transition	250MHz
Mounting Type	Surface Mount
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UMH10NTN UMH10NTN UMH10NTNCT ND UMH10NTNCTND UMH10NTNCT
