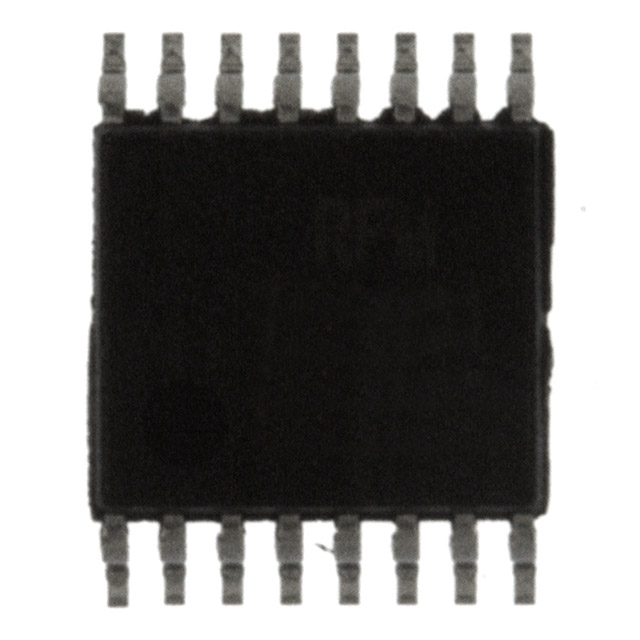

Modulation: FSK (Frequency Hopping Spread Spectrumcapability) Frequency range: 300-1000 MHz High sensitivity: (-105 dBm) High data rate: Up to 256 kbps Low current consumption(RX current ~8.5mA) Wide operating supply voltage: 2.2 to 5.4V Low standby current (0.2uA) Integrated PLL, IF, Baseband Circuitry Automatic Frequency Adjust(TX/RX frequency alignment) Programmable Analog/Digital Baseband Filter Programmable Output RF Power Programmable Input LNA Gain
TRC101 Maximum Ratings
White Papers Reflow Soldering of SMD Products To Printed Wiring Boards (PWBs)Using Lead-Free Solder Saw-Based Hybrid Transceivers in Slam Packaging Advances in SAW Technology (LPRA Presentation)Application Notes Implementing a FHSS radio with the TRC103 Antenna App Note: Part I Loop Antennas RFIC Battery Life Calculator RFIC TX/RX Configuration Using the TR8100 in ISSS Mode FCC Regulations Antenna Lengths TRC101-102 FHSS RFIC High Power TRC101-102 TRC102 Range Test at 433.92MHz High Data Rate SAW-Stabilized ASK Transmitter SAW Based Transmitter Design Notes Simple Clock & Data Recovery RFM Battery Life Calculator RFM 1% Transmitter Duty Cycle Calculator Comparison Between OOK/ASK and FSK Modulation Techniques for Radio Links World Wide Frequency Allocations for RFM's Transceivers, Transmitters and Receivers Hand Soldering for TX, RX, and TR Removing the TX, RX, and TR from the PCB 2nd Generation ASH Transceiver Designers Guide (English) 2nd Generation ASH Transceiver Designers Guide (Japanese Translation) 3rd-Generation ASH Transceiver Designer's Guide Antennas for Low Power Applications ASH Transceiver Antenna Impedance Matching Design and Certification of ASH Radio Systems for Japan Assembling ASH Radio Products Onto Customers' PWBs ESD Protection 2nd Generation ASH Radio PCB Gerber Files10mWpcb_1522001x1.zipSM20HEMI_1528002x2.zipSM20LEMI_1528001x1.zip 2nd Generation ASH Transceiver 10 mW Power Amplifier Circuit Board Unique Considerations for Data Radio UARTS Transmitter Design Notes Low Power ASK Transmitter OOK Vs ASK Vs FSK Saw- Stabilized FSK Oscillator 2nd Generation Ash Receiver 5V to 3V Conversion Software 2nd Generation ASH Design Assistance Software (New Version 2.5.4) RFIC Design Assistance SoftwareDownload RFDA Software zip file 35MB RFDA Software Datasheet RX Software Uart Example 2nd Generation ASH Transceiver Software Designer's Guide (Updated, Faster Software) Virtual Wire? Development Kits & Software Free VWO Firmware Source CodeOther Resources Top 10 Ways To Get Greater Range And Reliability From Your Short-Range Wireless System
TRC101 Features
• Modulation: FSK (Frequency Hopping Spread Spectrum capability) • Frequency range: 300-1000 MHz • High sensitivity: (-105 dBm) • High data rate: Up to 256 kbps • Low current consumption (RX current ~8.5mA) • Wide operating supply voltage: 2.2 to 5.4V • Low standby current (0.2uA) • Integrated PLL, IF, Baseband Circuitry • Automatic Frequency Adjust(TX/RX frequency alignment) • Programmable Analog/Digital Baseband Filter • Programmable Output RF Power • Programmable Input LNA Gain • Internal Valid Data Recognition • Transmit/Receive FIFO • Standard SPI Interface • TTL/CMOS Compatible I/O pins • Programmable CLK Output Freq • Automatic Antenna tuning circuit • Low cost, generic 10MHz Xtal reference • Integrated, Programmable Low Battery Voltage Detector • Programmable Wake-up Timer with programmable Duty Cycle • Integrated Selectable Analog/Digital RSSI • Integrated Crystal Oscillator • External Processor Interrupt pin • Programmable Crystal Load Capacitance • Programmable Data Rate • Integrated Clock & Data Recovery • Programmable, Positive/Negative FSK Deviation • External Wake-up Events • Support for Multiple Channels • [315/433 Bands] 380 Channels(25kHz) • [868 Band] 761 Channels(25kHz) • [915 Band] 1040 Channels(25kHz) • Power-saving sleep mode • Very few external components requirement • Small size plastic package: 16-pin TSSOP • Standard 13 inch reel, 2000 pieces.
TRC101 Typical Application
• Active RFID tags • Automated Meter reading • Home & Industrial Automation • Security systems • Two way Remote keyless entry • Automobile Immobilizers • Sports & Performance monitoring • Wireless Toys • Medical equipment • Low power two way telemetry systems • Wireless mesh sensors • Wireless modules
TRC101 Connection Diagram
TRC102 Parameters
Technical/Catalog Information
TRC102
Vendor
RF MONOLITHICS INC (VA)
Category
RF and RFID
Frequency
400MHz ~ 1GHz
Data Rate - Maximum
256 kbps
Modulation or Protocol
FSK
Applications
General Purpose
Power - Output
5dBm
Sensitivity
-112dBm
Voltage - Supply
2.2 V ~ 3.8 V
Current - Receiving
12mA
Current - Transmitting
23mA
Package / Case
16-TSSOP
Operating Temperature
-40°C ~ 85°C
Data Interface
PCB, Surface Mount
Antenna Connector
PCB, Surface Mount
Packaging
Cut Tape (CT)
Memory Size
-
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
TRC102 TRC102 583 1094 1 ND 58310941ND 583-1094-1
TRC102 General Description
Modulation: FSK (Frequency Hopping Spread Spectrumcapability) Frequency range: 400-1000 MHz High sensitivity: (-112 dBm) High data rate: Up to 256 kbps Low current consumption (RX current ~11mA) Operating supply voltage: 2.2 to 3.8V Low standby current (0.3uA) Programmable Synch Byte Integrated PLL, IF, Baseband Circuitry Automatic Frequency Adjust(TX/RX frequency alignment) Programmable Analog/Digital Baseband Filter Programmable Output RF Power Programmable Input LNA Gain
TRC102 Maximum Ratings
White Papers Reflow Soldering of SMD Products To Printed Wiring Boards (PWBs)Using Lead-Free Solder Saw-Based Hybrid Transceivers in Slam Packaging Advances in SAW Technology (LPRA Presentation)Application Notes Implementing a FHSS radio with the TRC103 Antenna App Note: Part I Loop Antennas RFIC Battery Life Calculator RFIC TX/RX Configuration Using the TR8100 in ISSS Mode FCC Regulations Antenna Lengths TRC101-102 FHSS RFIC High Power TRC101-102 TRC102 Range Test at 433.92MHz High Data Rate SAW-Stabilized ASK Transmitter SAW Based Transmitter Design Notes Simple Clock & Data Recovery RFM Battery Life Calculator RFM 1% Transmitter Duty Cycle Calculator Comparison Between OOK/ASK and FSK Modulation Techniques for Radio Links World Wide Frequency Allocations for RFM's Transceivers, Transmitters and Receivers Hand Soldering for TX, RX, and TR Removing the TX, RX, and TR from the PCB 2nd Generation ASH Transceiver Designers Guide (English) 2nd Generation ASH Transceiver Designers Guide (Japanese Translation) 3rd-Generation ASH Transceiver Designer's Guide Antennas for Low Power Applications ASH Transceiver Antenna Impedance Matching Design and Certification of ASH Radio Systems for Japan Assembling ASH Radio Products Onto Customers' PWBs ESD Protection 2nd Generation ASH Radio PCB Gerber Files10mWpcb_1522001x1.zipSM20HEMI_1528002x2.zipSM20LEMI_1528001x1.zip 2nd Generation ASH Transceiver 10 mW Power Amplifier Circuit Board Unique Considerations for Data Radio UARTS Transmitter Design Notes Low Power ASK Transmitter OOK Vs ASK Vs FSK Saw- Stabilized FSK Oscillator 2nd Generation Ash Receiver 5V to 3V Conversion Software 2nd Generation ASH Design Assistance Software (New Version 2.5.4) RFIC Design Assistance SoftwareDownload RFDA Software zip file 35MB RFDA Software Datasheet RX Software Uart Example 2nd Generation ASH Transceiver Software Designer's Guide (Updated, Faster Software) Virtual Wire? Development Kits & Software Free VWO Firmware Source CodeOther Resources Top 10 Ways To Get Greater Range And Reliability From Your Short-Range Wireless System
TRC102 Features
• Modulation: FSK (Frequency Hopping Spread Spectrum capability) • Frequency range: 400-1000 MHz • High sensitivity: (-112 dBm) • High data rate: Up to 256 kbps • Low current consumption (RX current ~11mA) • Operating supply voltage: 2.2 to 3.8V • Low standby current (0.3uA) • Programmable Synch Byte • Integrated PLL, IF, Baseband Circuitry • Automatic Frequency Adjust(TX/RX frequency alignment) • Programmable Analog/Digital Baseband Filter • Programmable Output RF Power • Programmable Input LNA Gain • Internal Valid Data Recognition • Transmit/Receive FIFO • Standard SPI Interface • TTL/CMOS Compatible I/O pins • Programmable CLK Output Freq • Automatic Antenna tuning circuit • Low cost, generic 10MHz Xtal reference • Integrated, Programmable Low Battery Voltage Detector • Programmable Wake-up Timer with programmable Duty Cycle • Integrated Selectable Analog/Digital RSSI • Integrated Crystal Oscillator • External Processor Interrupt pin • Programmable Crystal Load Capacitance • Programmable Data Rate • Integrated Clock & Data Recovery • Programmable FSK Deviation Polarity • External Wake-up Events
TRC102 Typical Application
• Active RFID tags • Automated Meter reading • Home & Industrial Automation • Security systems • Two way Remote keyless entry • Automobile Immobilizers • Sports & Performance monitoring • Wireless Toys • Medical equipment • Low power two way telemetry systems • Wireless mesh sensors • Wireless modules
