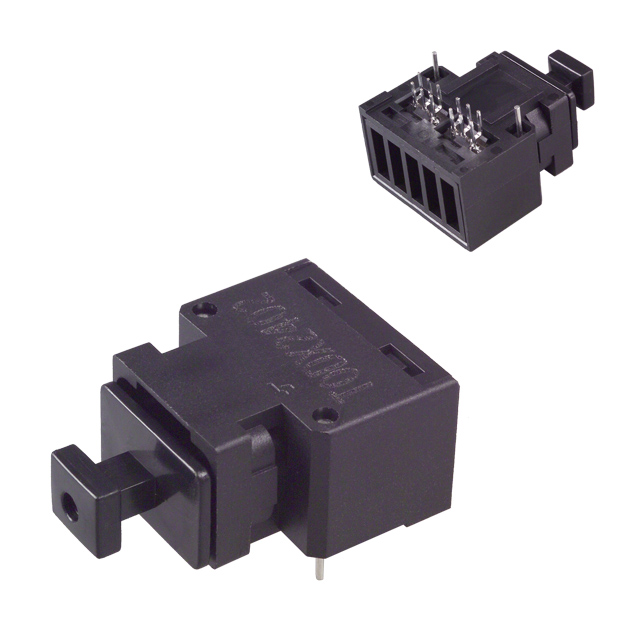

TOC-P16X-A1, TODX2402(F), TODX270A Datasheet download
Category: Optoelectronics
MFG: Toshiba
Package Cooled: N/A
D/C: N/A
Description: TRANSCEIVER OPTICAL FOR SMI CONN
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TOC025
File Size: 26191 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TOD3202AE
File Size: 106657 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TODX270A
File Size: 458209 KB
Manufacturer: Toshiba
Download : Click here to Download
| Technical/Catalog Information | TODX2402(F) |
| Vendor | Toshiba |
| Category | Optoelectronics |
| Applications | Ethernet |
| Voltage - Supply | 3 V ~ 3.6 V |
| Data Rate | 250Mbps |
| Connector Type | SMI |
| Wavelength | 650nm |
| Mounting Type | PCB |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TODX2402 F TODX2402F |
The TODX270A is a kind of fiber optic transceiving module for duplex digital signal communication. There are some features as follows: (1)data rate: DC to 6 Mb/s (NRZ code); (2)transmission distance: up to 40m; (3)TTL interface; (4)LED is driven by differential circuit; (5)ATC (automatic threshold control) circuit is used for stablized output at wide range of optical power level.
What comes next is about the maximum ratings (Ta=25): (1)storage temperature, Tstg: -40 to 70; (2)operating temperature, Topr: -40 to 70; (3)supply voltage, VCC: -0.5 to 7 V; (4)input voltage, VIN: -0.5 to VCC+0.5 V; (5)low level output current, IOL: 20 mA; (6)high level output current, IOH: -1 mA; (7)soldering temperature, Tsol: 260. Then is about the recommended operating conditions: (1)supply voltage, VCC: 4.75 V min, 5.0 V typ and 5.25 V max; (2)high level input voltage, VIH: 2.0 V min and VCC V max; (3)low level input voltage, VIH: 0 V min and 0.8 V max; (4)high level output current, IOH: -60A max; (5)low level output current, IOL: 1.2 mA max.
The following is about the electrical and optical characteristics (Ta=25, VCC=5 V): (1)data rate: 6 Mb/s max at NRZ code; (2)fiber output power, Pf: -15 dBm min and -9 dBm max at R=0; (3)peak emission wavelength, P: 650 nm typ; (4)maximum receivable power, PMAX: -15 dBm min when DC-6 Mb/s, using APF; (5)minimum receivable power, PMIN: -27 dBm min when DC-6 Mb/s, using APF; (6)current consumption, ICC: 85 mA typ and 115 mA max at R=0; (7)high level input voltage, VIH: 2.0 V min; (8)low level input voltage, VIL: 0.8 V max ; (9)high level input current, IIH: 2.0A max; (10)low level input current, IIL: -0.4 mA max; (11)high level output voltage, VOH: 4.6 V min; (12)low level output voltage, VOL: 0.4 V max.
