TIL113SM, TIL-117, TIL117 (QTC)

Table of contents:
Info of TIL113SM
Info of TIL-117
Info of TIL117 (QTC)

TIL113SM, TIL-117, TIL117 (QTC) Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Isolators D/C:09+

TIL113SM, TIL-117, TIL117 (QTC) Datasheet download

Five Points

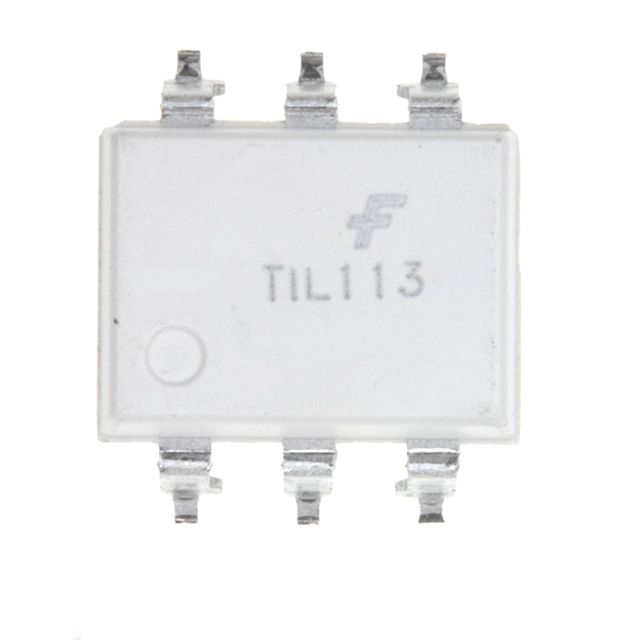

Part Number: TIL113SM

Category: Isolators

MFG: Fairchild Optoelectronics Group

Package Cooled:

D/C: 09+

Description: PHOTOCOUPLER DARL OUT GP 6SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TIL113SM Parameters

Technical/Catalog Information	TIL113SM
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Voltage - Isolation	7500Vrms
Input Type	DC
Output Type	Darlington with Base
Current - Output / Channel	30mA
Voltage - Output	30V
Vce Saturation (Max)	1.25V
Current Transfer Ratio (Min)	300% @ 30mA
Mounting Type	Surface Mount
Package / Case	6-SMD
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TIL113SM TIL113SM
