TCST1230, TCST1300, TCST2000

Table of contents:
Info of TCST1230
Info of TCST1300
Info of TCST2000

TCST1230, TCST1300, TCST2000 Selling Leads, Datasheet

MFG:Vishay/Semiconductors Category:Sensors, Transducers Package Cooled:GAP-5-DIP-4 D/C:2010+

TCST1230, TCST1300, TCST2000 Datasheet download

Five Points

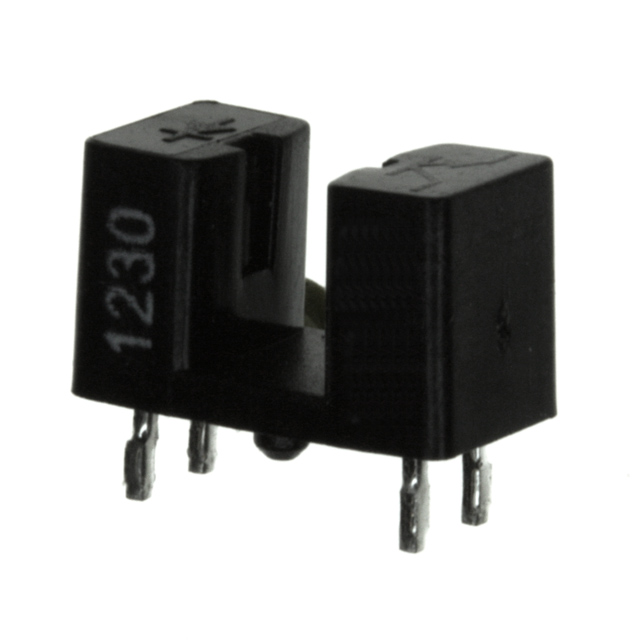

Part Number: TCST1230

Category: Sensors, Transducers

MFG: Vishay/Semiconductors

Package Cooled: GAP-5-DIP-4

D/C: 2010+

Description: SENSR OPTO SLOT 2.8MM TRANS THRU

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TCST1230 Parameters

Technical/Catalog Information	TCST1230
Vendor	Vishay/Semiconductors
Category	Sensors, Transducers
Sensing Distance	0.110" (2.8mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	70V
Current - Collector (Ic) (Max)	100mA
Current - DC Forward (If)	60mA
Output Configuration	Phototransistor
Response Time	15s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Tube
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TCST1230 TCST1230 751 1036 5 ND 75110365ND 751-1036-5

TCST1230 General Description

This device has a compact construction where the emittig-light sources and the detectors are located face-to-face on the same optical axis. The operating wavelength is 950 nm. The detector consists of a phototransistor.

TCST1230 Features

Gap 3 mm
Package height: 6 mm
Aperture 0.5 mm
Plastic polycarbonate housing
Current Transfer Ratio (CTR) of typical 5%

TCST1230 Typical Application

Position sensor for shaft encoder
Detection of opaque material such as paper, IBM cards, magnetic tapes etc
Limit switch for mechanical motions in VCR
Read/ write head position in data storage equipment
General purpose wherever the space is limited

TCST1300 General Description

This device has a compact construction where the emitting-light sources and the detectors are located face-to-face on the same optical axis. The operating wavelength is 950 nm. The detector consists of a phototransistor.

TCST1300 Maximum Ratings

Parameter	Test Conditions	Symbol	Value	Unit
Reverse voltage		V_R	6	V
Forward current		I_F	60	mA
Forward surge current	t_p 10 s	I_FSM	3	A
Power dissipation	T_amb 25	P_V	100	mW
Junction temperature		T_j	100

TCST1300 Features

· Compact construction
· No setting efforts
· Polycarbonate case protected against ambient light
· 2 case variations
· 3 different apertures
· CTR selected in groups (regarding fourth number of type designation)

TCST1300 Typical Application

· Contactless optoelectronic switch, control and counter

TCST2000 General Description

This device has a compact construction where the emitting-light sources and the detectors are located face-to-face on the same optical axis.

The operating wavelength is 950 nm. The detector consists of a phototransistor.

TCST2000 Maximum Ratings

Parameter	Test Conditions	Symbol	Value	Unit
Reverse voltage		V_R	6	V
Forward current		I_F	60	mA
Forward surge current	tp 10 s	I_FSM	3	A
Power dissipation	T_amb 25	P_V	100	mW
Junction temperature		T_j	100
Collector emitter voltage		V_CEO	70	V
Emitter collector voltage		V_ECO	7	V
Collector current		I_C	100	mA
Power dissipation	tp /T = 0.5, tp 10 ms	I_CM	200	mW
Power dissipation	T_amb 25	P_V	150	mW
Junction temperature		T_j	100
Total power dissipation	T_amb 25	P_tot	250	mW
Ambient temperature range		T_amb	55 to +85
Storage temperature range		T_stg	55 to +100
Soldering temperature	2 mm from case, t 5 s	T_sd	260

TCST2000 Features

· Compact construction
· No setting efforts
· 2 case variations
· Polycarbonate case protected against ambient light
· Current Transfer Ratio (CTR) of typical 2.5%

TCST2000 Typical Application

· Contactless optoelectronic switch, control and counter
