MFG:Sirenza Microdevices Inc Category:RF and RFID Package Cooled:www.dayue-hk.com D/C:N/A
SGA-1263, SGA-1263-TR1, SGA-1286 Datasheet download
Category: RF and RFID
MFG: Sirenza Microdevices Inc
Package Cooled: www.dayue-hk.com
D/C: N/A

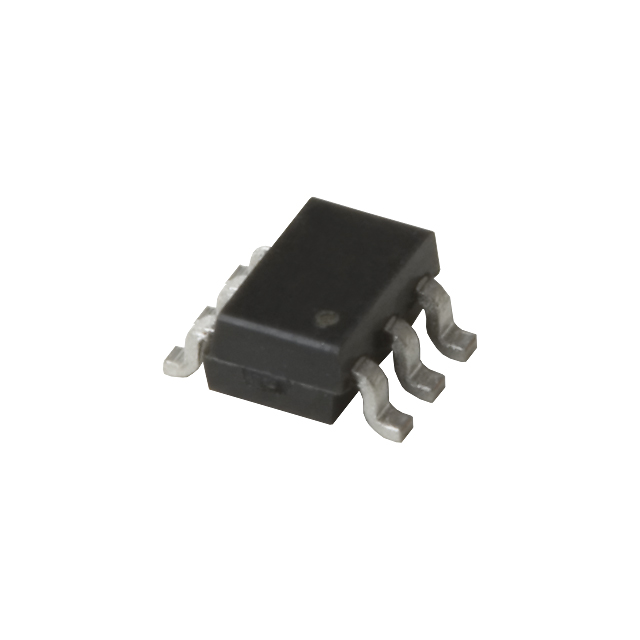

Description: IC AMP HBT SIGE 4000MHZ SOT-363
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SGA-1263
File Size: 339585 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGA-0163
File Size: 264778 KB
Manufacturer: STANFORD [Stanford Microdevices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SGA-0163
File Size: 264778 KB
Manufacturer: STANFORD [Stanford Microdevices]
Download : Click here to Download
| Technical/Catalog Information | SGA-1263 |
| Vendor | Sirenza Microdevices Inc |
| Category | RF and RFID |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Voltage - Supply | 2.5V ~ 3.1V |
| Current - Supply | 6mA ~ 10mA |
| Gain | 15.2dB |
| Frequency | 0Hz ~ 4GHz |
| RF Type | ISM, PCS |
| Packaging | Tape & Reel (TR) |
| Noise Figure | 2.9dB @ 1GHz ~ 2.4GHz |
| P1db | -7.4dBm |
| Test Frequency | 1.95GHz |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SGA 1263 SGA1263 |
Stanford Microdevices’ SGA-1263 is a Silicon Germanium HBT Heterostructure Bipolar Transistor (SiGe HBT) amplifier that offers excellent isolation and flat gain response for applications to 4 GHz.
This RFIC is a 2-stage design that provides high isolation of up to 40dB at 2 GHz and is fabricated using the latest SiGe HBT 50 GHz FT process, featuring 1 micron emitters with Vceo > 7V.
These unconditionally stable amplifiers have less than 1dB gain drift over 125℃ operating range (-40℃ to +85℃) and are ideal for use as buffer amplifiers in oscillator applications covering cellular, ISM and narrowband PCS bands.
|
Symbol |
Parameters |
Unit |
Min. |
Typ. |
Max. | |
|
P1dB |
Output Power at 1dB Compression | f = 850 MHz f = 1950 MHz |
dBm dBm |
-7.8 -7.4 |
||
|
S21 |
Small Signal Gain | f = DC - 1000 MHz f = 1000 - 2000 MHz f = 2000 - 4000 MHz |
dB dB dB |
14.3 |
15.9 15.2 12.3 |
|
|
S12 |
Reverse Isolation | f = DC - 1000 MHz f = 1000 - 2000 MHz f = 2000 - 4000 MHz |
dB dB dB |
56.3 40.6 30.8 |
||
|
S11 |
Input VSWR | f = DC - 2400 MHz f = 2400 - 4000 MHz |
- |
1.8:1 1.3:1 |
||
|
S22 |
Output VSWR | f = DC - 2400 MHz f = 2400 - 4000 MHz |
- |
1.8:1 1.9:1 |
||
|
IP3 |
Third Order Intercept Point Power out per Tone = -20 dBm |
f = 850 MHz f = 1950 MHz |
dBm dBm |
2.6 2.8 |
||
|
NF |
Noise Figure | f = DC - 1000 MHz f = 1000 - 2400 MHz |
dB dB |
2.7 2.9 |
||
|
TD |
Group Delay | f = 1000 MHz |
pS |
82 |
||
|
VD |
Device Voltage |
V |
2.5 |
2.8 |
3.1 |
