S7129LSF, S7129SF, S7131SF

Table of contents:
Info of S7129LSF
Info of S7129SF
Info of S7131SF

S7129LSF, S7129SF, S7131SF Selling Leads, Datasheet

MFG:AUK?04+ Package Cooled:17500 D/C:SOT-23

S7129LSF, S7129SF, S7131SF Datasheet download

Five Points

Part Number: S7129LSF

MFG: AUK?04+

Package Cooled: 17500

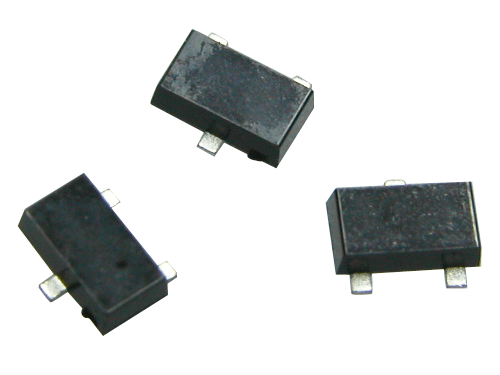

D/C: SOT-23

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

S7129SF General Description

• As Control Circuit of Battery-Backed Memory
• As Measure Against Erroneous Operations at Power On-Off
• As Resetting Function for the CPU-Mounted Equipment --- PC, Printer, VTR, Fax, C-TV etc.
• As Measure Against System Runaway at Instantaneous Break of Power Supply etc.

S7129SF Maximum Ratings

Characteristic	Symbol	Ratings	Unit
Supply voltage	V_CC	-0.3 ~ +15	V
Power Dissipation (Package Limitation)	P_D^*	300	㎽
Operating Temperature	T_opr	-30 ~ +75
Storage Temperature	T_stg	-55 ~ +150

* With PCB(8*8 Copper Area) at Glass Epoxy Board (t=1.7 , Area; 20*20 )

S7129SF Features

• Current Consumption is Low (I_CCL=300 ㎂ Typ. I_CCH=30 ㎂ Typ.)
• Resetting Output Minimum Guarantee Voltage is Low (0.8V Typ.)
• Hysteresis Voltage is Provided (50 ㎷ Typ.)

S7129SF Connection Diagram

S7131SF General Description

The S71xx prevents the error of system from supply voltage below normal voltage level at the time the power on and instantaneous power off in systems.

S7131SF Maximum Ratings

Characteristic	Symbol	Ratings	Unit
Supply voltage	V_CC	-0.3 ~ +15	V
Power Dissipation (Package Limitation)	P_D^*	300	㎽
Operating Temperature	T_opr	-30 ~ +75
Storage Temperature	T_stg	-55 ~ +150

* With PCB(8*8 Copper Area) at Glass Epoxy Board (t=1.7 , Area; 20*20 )

S7131SF Features

• Current Consumption is Low (I_CCL=300 ㎂ Typ. I_CCH=30 ㎂ Typ.)
• Resetting Output Minimum Guarantee Voltage is Low (0.8V Typ.)
• Hysteresis Voltage is Provided (50 ㎷ Typ.)

S7131SF Connection Diagram
