MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:1000 D/C:06+
S0N1, S100, S100(B2) Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: 1000
D/C: 06+

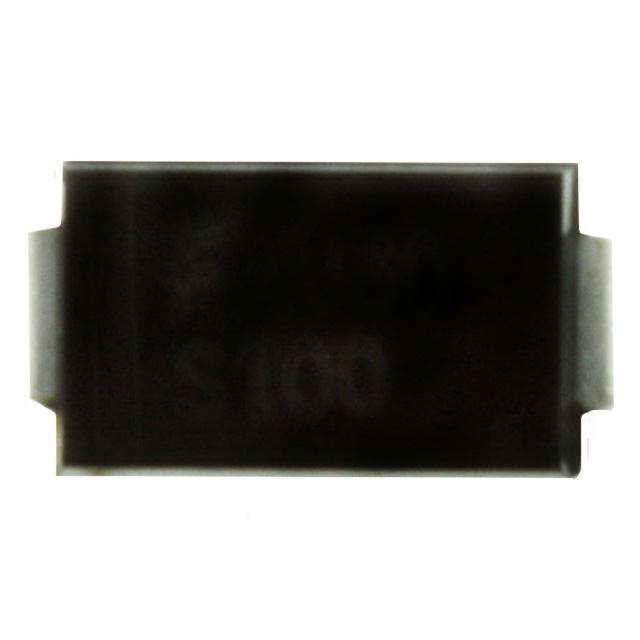

Description: DIODE SCHOTTKY GPP 1A 100V SMA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: S100
File Size: 67701 KB
Manufacturer: PANJIT [Pan Jit International Inc.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: S100
File Size: 67701 KB
Manufacturer: PANJIT [Pan Jit International Inc.]
Download : Click here to Download
| Technical/Catalog Information | S100 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 850mV @ 1A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200A @ 100V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | S100 S100 S100CT ND S100CTND S100CT |
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing |
|---|---|---|---|---|---|---|---|
| S100 | Full Production | RoHS Compliant | $0.18 | DO-214AC(SMA) | 2 | TAPE REEL | TBD |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
