RPI-1133, RPI-121, RPI-125

Table of contents:
Info of RPI-1133
Info of RPI-121
Info of RPI-125

RPI-1133, RPI-121, RPI-125 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Sensors, Transducers Package Cooled:GAP-1-DIP-5 D/C:09+

RPI-1133, RPI-121, RPI-125 Datasheet download

Five Points

Part Number: RPI-121

Category: Sensors, Transducers

MFG: Rohm Semiconductor

Package Cooled: GAP-1-DIP-5

D/C: 09+

Description: SENSOR OPTO SLOT 1MM TRANS THRU

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RPI-1133 General Description

The RPI-1133 is a compact photointerrupter that uses a photo IC for the detector.

RPI-1133 Features

· Small slit width (0.3 mm) for high precision.
· Fast response.
· Built-in visible light filter.

RPI-1133 Typical Application

·Optical control equipment

RPI-121 Parameters

Technical/Catalog Information	RPI-121
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.039" (1mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 121 RPI121 511 1336 ND 5111336ND 511-1336

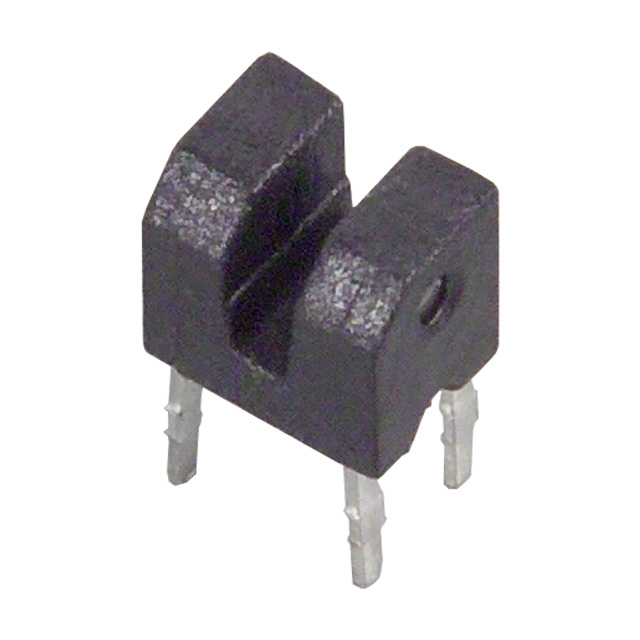

RPI-121 General Description

The RPI-121 is an ultra-small size, doublelayer mold photointerrupter.

RPI-121 Features

· Ultra-small.
· Minimal influence from stray light.
· Low collector-emitter saturation voltage.

RPI-121 Typical Application

·Optical control equipment
·Cameras
·Floppy disk drives

RPI-125 Maximum Ratings

Parameter		Symbol	Limits	Unit
input(LED)	Forward current	I_F	50	mA
	Reverse voltage	V_R	5	V
	Power dissipation	P_D	80	mW
Output(photo transistor)	Collector-emitter voltage	V_CEO	30	V
	Emitter-collector voltage	V_ECO	4.5	V
	Collector current	I_C	30	mA
	Collector power dissipation	P_C	80	mW
Operating temperature		T_opr	−25to+85	°C
Storage temperature		T_stg	−30to+85	°C
Soldering temperature		T_sol	260/5	°C/sec

RPI-125 Features

· Ultra-small.
· Gap 1.2mm.

RPI-125 Typical Application

·DSC(Digital steal camera)
·DVC(Digital video camera)
·Digital handy phone
