RPI-0125, RPI-0125 SMD, RPI-0125 SMD PB-FREE

Table of contents:
Info of RPI-0125
Info of RPI-0125 SMD
Info of RPI-0125 SMD PB-FREE

RPI-0125, RPI-0125 SMD, RPI-0125 SMD PB-FREE Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Sensors, Transducers Package Cooled:JAT D/C:05+NOPB

RPI-0125, RPI-0125 SMD, RPI-0125 SMD PB-FREE Datasheet download

Five Points

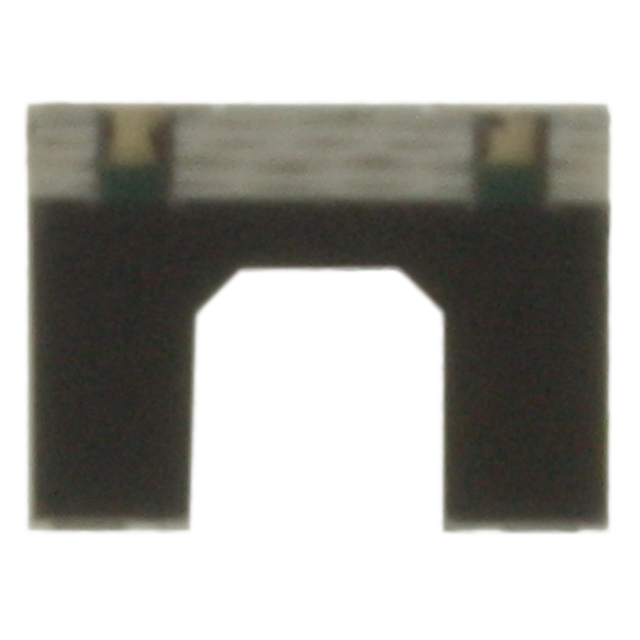

Part Number: RPI-0125

Category: Sensors, Transducers

MFG: Rohm Semiconductor

Package Cooled: JAT

D/C: 05+NOPB

Description: SENSOR OPTO SLOT 1.2MM TRANS SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RPI-0125 Parameters

Technical/Catalog Information	RPI-0125
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.047" (1.2mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Tape & Reel (TR)
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 0125 RPI0125 511 1629 2 ND 51116292ND 511-1629-2

RPI-0125 Maximum Ratings

Parameter		Symbol	Limits	Unit
input(LED)	Forward current	I_F	50	mA
	Reverse voltage	V_R	5	V
	Power dissipation	P_D	80	mW
Output(photo transistor)	Collector-emitter voltage	V_CEO	30	V
	Emitter-collector voltage	V_ECO	4.5	V
	Collector current	I_C	30	mA
	Collector power dissipation	P_C	80	mW
Operating temperature		T_opr	−25to+85	°C
Storage temperature		T_stg	−30to+85	°C

RPI-0125 Features

· Ultra-small.
· Gap 1.2mm.

RPI-0125 Typical Application

·DSC(Digital steal camera)
·DVC(Digital video camera)
·Digital handy phone
