RB706F-40T106, RB715, RB715F

Table of contents:
Info of RB706F-40T106
Info of RB715
Info of RB715F

RB706F-40T106, RB715, RB715F Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT323 D/C:07+

RB706F-40T106, RB715, RB715F Datasheet download

Five Points

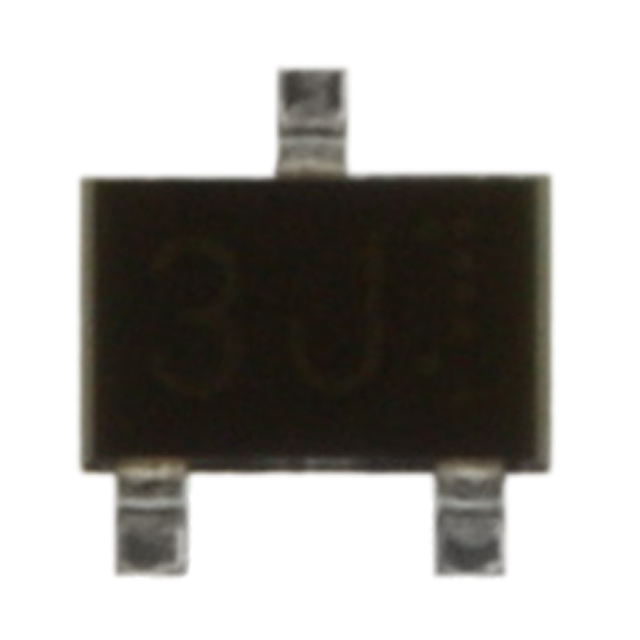

Part Number: RB706F-40T106

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT323

D/C: 07+

Description: DIODE SCHOTTKY 40V 30MA SOT-323

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RB706F-40T106 Parameters

Technical/Catalog Information	RB706F-40T106
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Series Connection
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io) (per Diode)	30mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 1mA
Current - Reverse Leakage @ Vr	1A @ 10V
Reverse Recovery Time (trr)	-
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RB706F 40T106 RB706F40T106 RB706F 40T106DKR ND RB706F40T106DKRND RB706F-40T106DKR

RB715F Maximum Ratings

Parameter	Symbol	Limits	Unit
Peak reverse voltage	V_RM	40	V
DC reverse voltage	V_R	40	V
Mean rectifying current	I_O	30	mA
Peak forward surge current	I_FSM	200	mA
Junction temperature	T_j	125	°C
Storage temperature	T_stg	−40~+125	°C

60 Hz for 1

RB715F Features

·Small surface mounting type. (EMD3, UMD3)
·Low VF and low IR
·High reliability

RB715F Typical Application

·General purpose detection
·High speed switching
