RB706D-40T146, RB706F-40, RB706F-40/3J

Table of contents:
Info of RB706D-40T146
Info of RB706F-40
Info of RB706F-40/3J

RB706D-40T146, RB706F-40, RB706F-40/3J Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:D3J 23 D/C:SOT23

RB706D-40T146, RB706F-40, RB706F-40/3J Datasheet download

Five Points

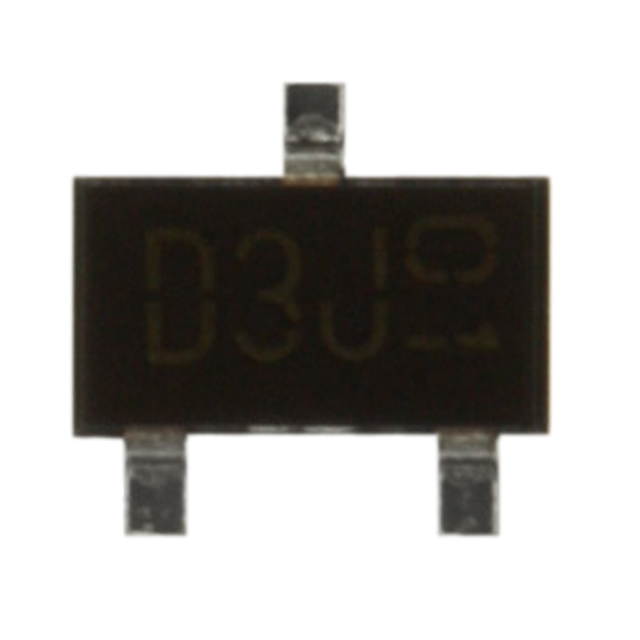

Part Number: RB706D-40T146

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: D3J 23

D/C: SOT23

Description: DIODE SCHOTTKY 40V 15MA SOT-346

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RB706D-40T146 Parameters

Technical/Catalog Information	RB706D-40T146
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Series Connection
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io) (per Diode)	30mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 1mA
Current - Reverse Leakage @ Vr	1A @ 10V
Reverse Recovery Time (trr)	-
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SC-59-3, SMT3, SOT-346, TO-236
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RB706D 40T146 RB706D40T146 RB706D 40T146TR ND RB706D40T146TRND RB706D-40T146TR

RB706F-40 Maximum Ratings

Parameter	Symbol	Limits	Unit
Peak reverse voltage	V_RM	45	V
DC reverse voltage	V_R	40	V
Mean rectifying current	I_O	30	mA
Peak forward surge current	I_FSM	200	mA
Junction temperature	T_j	125	°C
Storage temperature	T_stg	−40~+125	°C

60 Hz for 1

RB706F-40 Features

·Small surface mounting dual element linear type. (SMD3, UMD3)
·Low VF and low IR.
·High reliability.

RB706F-40 Typical Application

·General purpose detection
·High speed switching
