MFG:Fairchild Optoelectronics Group Category:Optoelectronics Package Cooled:DIP D/C:09+
QED4812, QED522, QED523 Datasheet download
Category: Optoelectronics
MFG: Fairchild Optoelectronics Group
Package Cooled: DIP
D/C: 09+
Description: LED IR EMIT ALGAAS 880NM TO-46
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: QED4812
File Size: 154284 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QED522
File Size: 392240 KB
Manufacturer: QT [QT Optoelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QED523
File Size: 392240 KB
Manufacturer: QT [QT Optoelectronics]
Download : Click here to Download
The QED4812 is designed as one kind of 20 to 30 watt DC/DC converter with single,dual or triple regulated outputs.All models feature an ultra-wide input range.An internal Pi input filiter is standard and is used to reduce reflected ripple current.All models reature a nickel-plated copper case with sixsided shielding.
The QED4812 has some features such as:(1)industry standard pin out;(2)up to 84% efficiency;(3)current mode control;(4)ultra-wide input voltage range;(5)500 VDC I/O isolation;(6)continuousshort circuit protection;(7)input Pi filter.An it can be used in telecommunication,data processing equipment;(3)industrial equipment;(4)medical equipment;(5)A/D and D/A converters and (6)distributed power systems.
Let me show you the meaning of the part number:QED4812,Q means series name,E means features,D means # of outputs,48 means vin nominal,12 means singles duals and Z means options.If you want to know more information such as the electrical characteristic,please download the datasheet in www.seekic.com and www.chinaicmart.com
| Technical/Catalog Information | QED522 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Optoelectronics |
| Voltage - Forward (Vf) Typ | 1.8V |
| Current - DC Forward (If) | 100mA |
| Wavelength | 880nm |
| Viewing Angle | 20° |
| Radiant Intensity (Ie) Min @ If | 20mW @ 100mA |
| Mounting Type | Through Hole |
| Package / Case | TO-46 |
| Orientation | Top View |
| Packaging | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | QED522 QED522 |

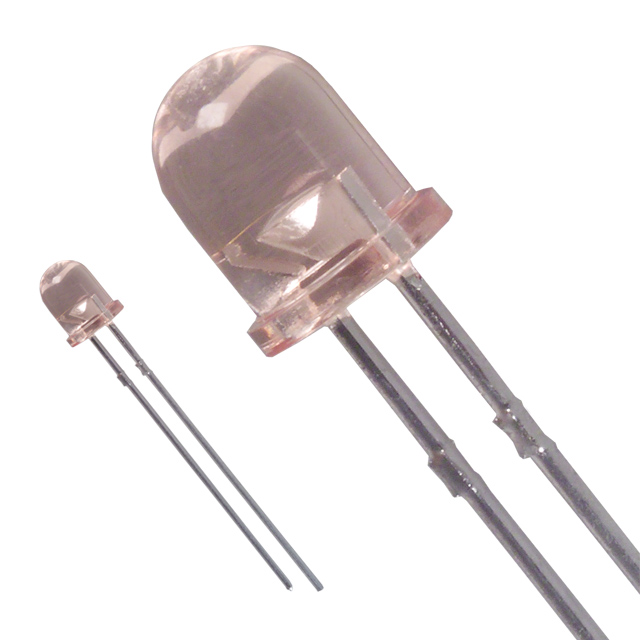

The QED522/523 is an 880 nm AlGaAs LED encapsulated in a clear, peach tinted, plastic TO-46 package.
| Parameter | Symbol | Rating | Unit |
| Operating Temperature | TOPR | -40to +100 | |
| Storage Temperature | TSTG | -40 to +100 | |
| Soldering Temperature (Flow) (2,3,4) | TSOL-1 | 240 for 5 sec | |
| Soldering Temperature (Flow)(2,3) | TSOL-F | 260 for 10 sec | |
| Continuous Forward Current | IF | 50 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation(1) | PD | 200 | mW |
•= 880 nm
• Chip material = AlGaAs
• Package type: Plastic TO-46
• Matched Photosensor: QSD722/723/724
• Narrow Emission Angle, 20°
• High Output Power
• Package material and color: clear, peach tinted, plastic
| Technical/Catalog Information | QED523 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Optoelectronics |
| Voltage - Forward (Vf) Typ | 1.8V |
| Current - DC Forward (If) | 100mA |
| Wavelength | 880nm |
| Viewing Angle | 20° |
| Radiant Intensity (Ie) Min @ If | 40mW @ 100mA |
| Mounting Type | Through Hole |
| Package / Case | TO-46 |
| Orientation | Top View |
| Packaging | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | QED523 QED523 |
The QED522/523 in an 880nm AlGaAs LED encapsulated in a clear, peach tinted, plastic TO-46 package.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing |
|---|---|---|---|---|---|---|---|
| QED523 | Full Production | RoHS Compliant | $0.214 | TO-46 | 2 | BULK | TBD |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
•= 880 nm
• Chip material = AlGaAs
• Package type: Plastic TO-46
• Matched Photosensor: QSD722/723/724
• Narrow Emission Angle, 20°
• High Output Power
• Package material and color: clear, peach tinted, plastic
