MFG:Fairchild Optoelectronics Group Category:Optoelectronics Package Cooled:N/A D/C:09+
QED233A4R0, QED234, QED422 Datasheet download
Category: Optoelectronics
MFG: Fairchild Optoelectronics Group
Package Cooled: N/A
D/C: 09+
Description: LED IR EMIT ALGAAS 880NM TO-46
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: QED121
File Size: 366754 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QED234
File Size: 86528 KB
Manufacturer: QT [QT Optoelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: QED422
File Size: 378535 KB
Manufacturer: QT [QT Optoelectronics]
Download : Click here to Download
| Technical/Catalog Information | QED233A4R0 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Optoelectronics |
| Voltage - Forward (Vf) Typ | 1.6V |
| Current - DC Forward (If) | 100mA |
| Wavelength | 940nm |
| Viewing Angle | 40° |
| Radiant Intensity (Ie) Min @ If | 10mW @ 100mA |
| Mounting Type | Through Hole |
| Package / Case | T 1 3/4 |
| Orientation | Top View |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | QED233A4R0 QED233A4R0 |
| Technical/Catalog Information | QED234 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Optoelectronics |
| Voltage - Forward (Vf) Typ | 1.6V |
| Current - DC Forward (If) | 100mA |
| Wavelength | 940nm |
| Viewing Angle | 40° |
| Radiant Intensity (Ie) Min @ If | 27mW @ 100mA |
| Mounting Type | Through Hole |
| Package / Case | T 1 3/4 |
| Orientation | Top View |
| Packaging | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | QED234 QED234 |

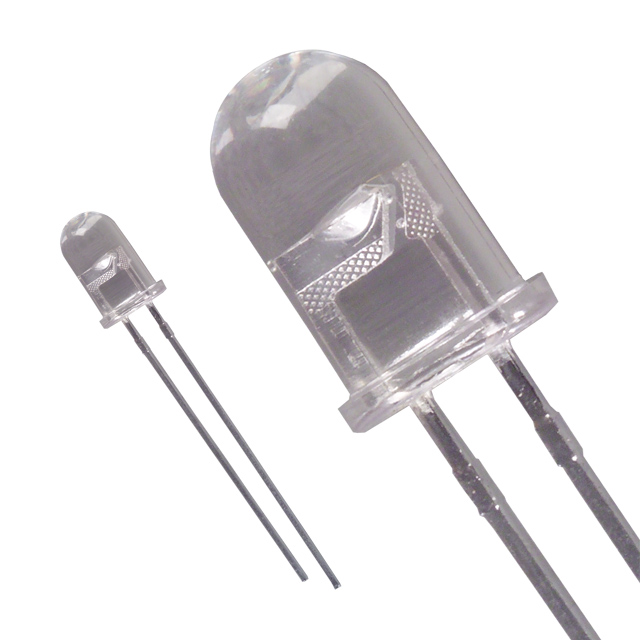

The QED233/QED234 is a 940 nm GaAs/AlGaAs LED encapsulated in a clear, untinted, plastic T-1 3/4 package.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing |
|---|---|---|---|---|---|---|---|
| QED234 | Full Production | RoHS Compliant | $0.139 | T-1 3/4 | 2 | BULK | TBD |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
| Technical/Catalog Information | QED422 |
| Vendor | Fairchild Optoelectronics Group |
| Category | Optoelectronics |
| Voltage - Forward (Vf) Typ | 1.8V |
| Current - DC Forward (If) | 100mA |
| Wavelength | 880nm |
| Viewing Angle | 30° |
| Radiant Intensity (Ie) Min @ If | 10mW @ 100mA |
| Mounting Type | Through Hole |
| Package / Case | TO-46 |
| Orientation | Top View |
| Packaging | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | QED422 QED422 |
The QED422/423 is an 880 nm AlGaAs LED encapsulated in a clear, purple tinted, plastic TO-46 package.
| Parameter | Symbol | Rating | Unit |
| Operating Temperature | TOPR | -40to +100 | |
| Storage Temperature | TSTG | -40 to +100 | |
| Soldering Temperature (Flow) (2,3,4) | TSOL-1 | 240 for 5 sec | |
| Soldering Temperature (Flow)(2,3) | TSOL-F | 260 for 10 sec | |
| Continuous Forward Current | IF | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation(1) | PD | 200 | mW | </
