PQ20RX05, PQ20RX11, PQ20VB1E

PQ20RX05, PQ20RX11, PQ20VB1E Selling Leads, Datasheet

MFG:Sharp Microelectronics  Category:Integrated Circuits (ICs)  Package Cooled:n/a  D/C:94

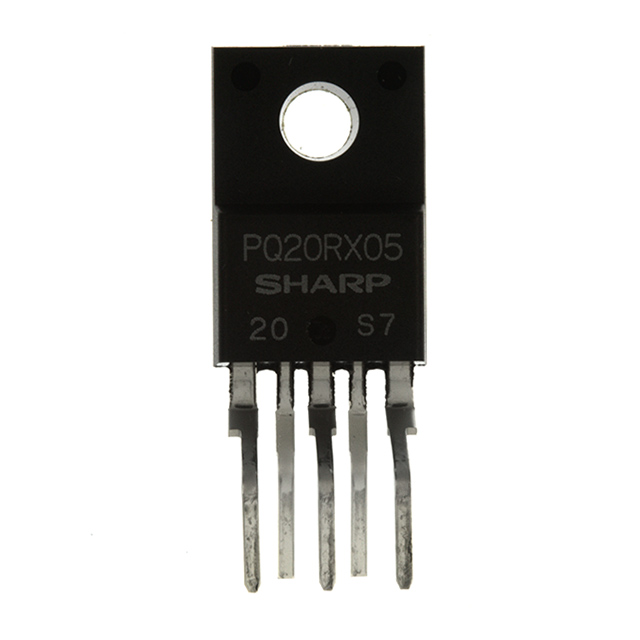

PQ20RX05 Picture

PQ20RX05, PQ20RX11, PQ20VB1E Datasheet download

Five Points

Part Number: PQ20RX05

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: n/a

D/C: 94

Description: IC REG LDO ADJ 1A ON/OFF TO-220






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

PQ20RX05 Suppliers

More PQ20RX05 Suppliers

Select All

  • PQ20RV11

  • Vendor: Sharp Pack: TO D/C: 04+& Qty: 956  Adddate: 2024-11-24
  • Inquire Now
  • YOUWEI ELECTRONICS CO., Ltd   China
    Contact: Mr.JACKHU   MSN:youweidz@hotmail.com
    Tel: 86-0755-33062827
    Fax: 86-0755-33062897
    (1)
  • PQ20RX11

  • Vendor: Sharp Qty: 1300 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20RX11

  • Vendor: Sharp Pack: TO Qty: 50000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)
  • PQ20VB2E

  • Vendor: Sharp Pack: TO Qty: 1759 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20VB2E

  • Vendor: Sharp Pack: TO Qty: 38000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)
  • PQ20VZ11

  • Vendor: Sharp Pack: TO Qty: 60000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)

About PQ20RX05

PDF/DataSheet Download

Datasheet: PQ20RX05

File Size: 66515 KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

PQ20RX11 Suppliers

More PQ20RX11 Suppliers

Select All

  • PQ20RX11

  • Vendor: Sharp Pack: TO Qty: 50000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)
  • PQ20RX11

  • Vendor: Sharp Qty: 1300 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20RV11

  • Vendor: Sharp Pack: TO D/C: 04+& Qty: 956  Adddate: 2024-11-24
  • Inquire Now
  • YOUWEI ELECTRONICS CO., Ltd   China
    Contact: Mr.JACKHU   MSN:youweidz@hotmail.com
    Tel: 86-0755-33062827
    Fax: 86-0755-33062897
    (1)
  • PQ20RX11

  • Vendor: Sharp Qty: 1300 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20RX11

  • Vendor: Sharp Pack: TO Qty: 50000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)

About PQ20RX11

PDF/DataSheet Download

Datasheet: PQ20RX11

File Size: 66515 KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

PQ20VB1E Suppliers

More PQ20VB1E Suppliers

Select All

  • PQ20RV11

  • Vendor: Sharp Pack: TO D/C: 04+& Qty: 956  Adddate: 2024-11-24
  • Inquire Now
  • YOUWEI ELECTRONICS CO., Ltd   China
    Contact: Mr.JACKHU   MSN:youweidz@hotmail.com
    Tel: 86-0755-33062827
    Fax: 86-0755-33062897
    (1)
  • PQ20RX11

  • Vendor: Sharp Qty: 1300 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20RX11

  • Vendor: Sharp Pack: TO Qty: 50000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)
  • PQ20VB2E

  • Vendor: Sharp Pack: TO Qty: 1759 Note: stock on hand  Adddate: 2024-11-24
  • Inquire Now
  • TCW(HK) electronic limited   China
    Contact: Mr.David   MSN:hongjijia@hotmail.com
    Tel: 86-0755-82817106
    Fax: 86-0755-83012739
    (3)
  • PQ20VB2E

  • Vendor: Sharp Pack: TO Qty: 38000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)
  • PQ20VZ11

  • Vendor: Sharp Pack: TO Qty: 60000  Adddate: 2024-11-24
  • Inquire Now
  • SZ-ORANDUO Electronic Co Ltd   China
    Contact: Mr.chen   MSN:aold89@hotmail.com
    Tel: 86-0755-88363053,36938178
    Fax: 86-0755-61640550-2596
    (16)

About PQ205A1

PDF/DataSheet Download

Datasheet: PQ205A1

File Size: 103678 KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

PQ20RX05 Parameters

Technical/Catalog InformationPQ20RX05
VendorSharp Microelectronics
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220
PackagingTube
Regulator TopologyPositive Adjustable
Current - Output500mA
Voltage - Output3 ~ 20 V
Operating Temperature-20°C ~ 80°C
Voltage - Input3.5 ~ 24 V
Number of Regulators1
Current - Limit (Min)500mA
Current Short Circuit (Isc)-
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names PQ20RX05
PQ20RX05
425 1721 5 ND
42517215ND
425-1721-5

PQ20RX05 Maximum Ratings

Parameter Symbol Rating Unit
*1Input voltage
VIN 24 V
*1ON/OFF control terminal voltage VC 24 V
*1Output adjustment terminal voltage
VADJ 7 V
Output current PQ20RX05 IO 0.5 A
PQ20RX11 1
Power dissipation (No heat sink) PD1 1.5(PQ20RX11),1.25(PQ20RX05) W
Power dissipation (With infinite heat sink) PD2 1.5(PQ20RX11),1.25(PQ20RX05) W
*2Junction temperature
Tj 150
Operating temperature Topr -20 to +80
Storage temperature Tstg -40 to +150
Soldering temperature Tsol 260 (For 10s)
*1 All are open except GND and applicable terminals.
*2 PD1: No heat sink, PD2: With infinite heat sink
*3 Overheat protection may operate at 125<=Tj<=150°C.

PQ20RX05 Features

·Low power-loss (Dropout voltage: MAX. 0.5V)
·Compact resin full mold package (Equivalent to TO-220)
·With built-in ON/OFF control function
·Variable output voltage (setting range: 3.0 to 20V)
·0.5A output (PQ20RX05) 1.0A output (PQ20RX11)
·Reference voltage precision: ±2.5%
·With built-in overcurrent protection, overheat protection, ASO protection circuit ASO: Area of Safety Operation

PQ20RX05 Typical Application

· Power supplies for various electronic equipment such as AV, OA equipment
· CRT displays

PQ20RX11 Parameters

Technical/Catalog InformationPQ20RX11
VendorSharp Microelectronics
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220
PackagingTube
Regulator TopologyPositive Adjustable
Current - Output1A
Voltage - Output3 ~ 20 V
Operating Temperature-20°C ~ 80°C
Voltage - Input3.5 ~ 24 V
Number of Regulators1
Current - Limit (Min)1A
Current Short Circuit (Isc)-
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names PQ20RX11
PQ20RX11
425 1722 5 ND
42517225ND
425-1722-5

PQ20RX11 Maximum Ratings

Parameter Symbol Rating Unit
*1Input voltage
VIN 24 V
*1ON/OFF control terminal voltage VC 24 V
*1Output adjustment terminal voltage
VADJ 7 V
Output current PQ20RX05 IO 0.5 A
PQ20RX11 1
Power dissipation (No heat sink) PD1 1.5(PQ20RX11),1.25(PQ20RX05) W
Power dissipation (With infinite heat sink) PD2 1.5(PQ20RX11),1.25(PQ20RX05) W
*2Junction temperature
Tj 150
Operating temperature Topr -20 to +80
Storage temperature Tstg -40 to +150
Soldering temperature Tsol 260 (For 10s)
*1 All are open except GND and applicable terminals.
*2 PD1: No heat sink, PD2: With infinite heat sink
*3 Overheat protection may operate at 125<=Tj<=150°C.

PQ20RX11 Features

·Low power-loss (Dropout voltage: MAX. 0.5V)
·Compact resin full mold package (Equivalent to TO-220)
·With built-in ON/OFF control function
·Variable output voltage (setting range: 3.0 to 20V)
·0.5A output (PQ20RX05) 1.0A output (PQ20RX11)
·Reference voltage precision: ±2.5%
·With built-in overcurrent protection, overheat protection, ASO protection circuit ASO: Area of Safety Operation

PQ20RX11 Typical Application

· Power supplies for various electronic equipment such as AV, OA equipment
· CRT displays
