PA92, PA93, PA94

Table of contents:
Info of PA92
Info of PA93
Info of PA94

PA92, PA93, PA94 Selling Leads, Datasheet

MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:APEX D/C:N/A

PA92, PA93, PA94 Datasheet download

Five Points

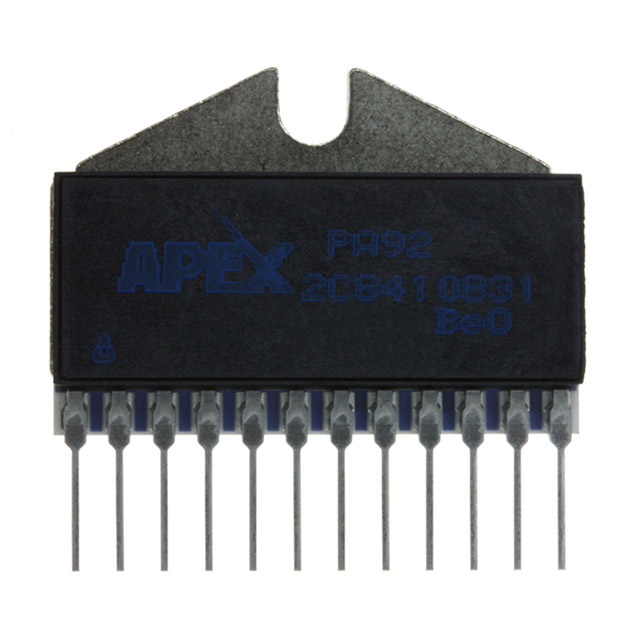

Part Number: PA92

Category: Integrated Circuits (ICs)

MFG: Cirrus Logic Inc

Package Cooled: APEX

D/C: N/A

Description: IC PWR AMP 800V 100MA 8SIP

Price Break

1
25
100
250
500
1000

Unit Price

267.22000
232.74000
224.12000
219.81000
215.50000
206.88000

Extended Price

267.22
5818.50
22412.00
54952.50
107750.00
206880.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PA92 Parameters

Technical/Catalog Information	PA92
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-SIP
Slew Rate	50 V/s
Gain Bandwidth Product	18MHz
Current - Supply	10mA
Current - Output/Channel	4A
Voltage - Supply, Single/Dual (±)	100 V ~ 400 V, ±50 V ~ 200 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	200pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	2000V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PA92 PA92 598 1332 ND 5981332ND 598-1332

PA92 General Description

The PA92 is a high voltage, low quiescent current MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 4A and pulse currents up to 7A. The safe operating area (SOA) has no second breakdown limitations and can be observed for all type loads by choosing an appropriate current limiting resistor. The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. APEX's Power SIP package uses a minimum of board space allowing for high density circuit boards. The Power SIP package is electrically isolated.

Applications:

Piezoelectric Positioning
High Voltage Instrumentation
Electrostatic Transducers
Programmable Power Supplies up to 390V

PA92 Maximum Ratings

Output Current MAX (A)	Supply Voltage MAX (V)	Slew Rate TYP (V/s)	Standby Current MAX (mA)	Power Dissipation MAX (W)
4	400	50	14	80

PA92 Features

·HIGH VOLTAGE -400V( ±200V)
·LOW QUIESCENT CURRENT - 10m
·HIGH OUTPUT CURRENT - 4
·PROGRAMMABLE CURRENT LIMIT

PA92 Typical Application

·PIEZOELECTRIC POSITIONING
·HIGH VOLTAGE INSTRUMENTATION
·ELECTROSTATIC TRANSDUCERS
·PROGRAMMABLE POWER SUPPLIES UP TO 390V

PA92 Connection Diagram

PA93 Parameters

Technical/Catalog Information	PA93
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-SIP
Slew Rate	50 V/s
Gain Bandwidth Product	12MHz
Current - Supply	10mA
Current - Output / Channel	8A
Voltage - Supply, Single/Dual (±)	80 V ~ 400 V, ±40 V ~ 200 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	200pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	2000V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PA93 PA93 598 1333 ND 5981333ND 598-1333

PA93 General Description

The PA93 is a high voltage, low quiescent current MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 8A and pulse currents up to 14A. The safe operating area (SOA) has no second breakdown limitations and can be observed for all type loads by choosing an appropriate current limiting resistor. The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. APEX's Power SIP package uses a minimum of board space allowing for high density circuit boards. The Power SIP package is electrically isolated.

PA93 Maximum Ratings

SUPPLY VOLTAGE, +V_S to V_S .......................................400V
OUTPUT CURRENT, source, sink, peak ...........14A, within SOA
POWER DISSIPATION, continuous @ T_C = 25°C ...........125W
INPUT VOLTAGE, differential ..........................................±20V
INPUT VOLTAGE, common mode .....................................±VS
TEMPERATURE, pin solder - 10s max .........................260°C
TEMPERATURE, junction^{2 ...........................................}150°C
TEMPERATURE RANGE, storage .....................40 to +85°C
OPERATING TEMPERATURE RANGE, case .......25 to +85°C

PA93 Features

• HIGH VOLTAGE - 400V (±200V)
• LOW QUIESCENT CURRENT - 10mA
• HIGH OUTPUT CURRENT - 8A
• PROGRAMMABLE CURRENT LIMIT

PA93 Typical Application

• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC TRANSDUCERS
• PROGRAMMABLE POWER SUPPLIES UP TO 390V

PA94 Parameters

Technical/Catalog Information	PA94
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-SIP (8 leads)
Slew Rate	700 V/s
Gain Bandwidth Product	140MHz
Current - Supply	17mA
Current - Output / Channel	100mA
Voltage - Supply, Single/Dual (±)	100 V ~ 900 V, ±50 V ~ 450 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	200pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	500V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Compliant by Exemption
Other Names	PA94 PA94 598 1334 ND 5981334ND 598-1334

PA94 General Description

The PA94 is a high voltage, MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 100mA and pulse currents up to 200mA into capacitive loads. The safe operating area (SOA) has no second breakdown limitations and can be observed for all load types by choosing an appropriate current limiting resistor. The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. APEX's Power SIP package uses a minimum of board space allowing for high density circuit boards.. The Power SIP package is electrically isolated. Isolating thermal washers (TW13) prevent arcing from pins to heatsink.

Applications:

High Voltage Instrumentation
Programmable Power Supplies up to ±430V
Mass Spectrometers
Semiconductor Measurement Equipment

PA94 Maximum Ratings

Output Current MAX (A)	Supply Voltage MAX (V)	Slew Rate TYP (V/s)	Standby Current MAX (mA)	Power Dissipation MAX (W)
0.1	900	700	24	30

PA94 Connection Diagram
