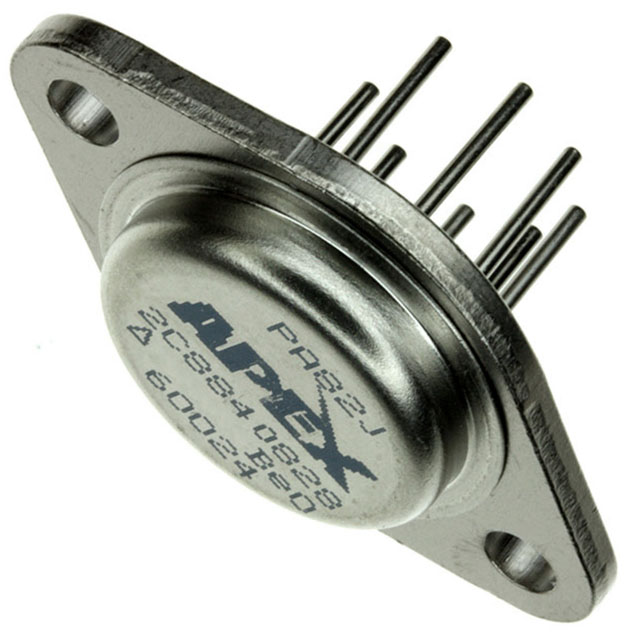

MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:TO D/C:NO
PA82J, PA82M, PA83 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: TO
D/C: NO
Description: OP AMP HV 300V .075A TO-3-8 CE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA82J
File Size: 75614 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA806C03
File Size: 76750 KB
Manufacturer: FUJI
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA83
File Size: 96952 KB
Manufacturer: APEX
Download : Click here to Download
| Technical/Catalog Information | PA82J |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 20 V/s |
| Gain Bandwidth Product | 5MHz |
| Current - Supply | 6.5mA |
| Current - Output/Channel | 15mA |
| Voltage - Supply, Single/Dual (±) | 140 V ~ 300 V, ±70 V ~ 150 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 5pA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 1500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA82J PA82J 598 1441 ND 5981441ND 598-1441 |
The PA80 series of high voltage operation amplifiers provides an extremely wide range of supply capability with two overlapping products. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a zener diode. As a result, these models offer outstanding common mode and power supply rejection. The output stage operates in the class A/B mode for best linearity. Internal phase compensation assures stability at all gain settings witout external components. Fixed internal current limits protect these amplifiers against a short circuit to common at most supply voltages. For sustained high energy flyback, external fast recovery diodes should be used. However, a heatsink may be necessary to maintain the proper case temperature under normal operating conditions.
This hybrid circuit utilizes thick film resistors, ceramic capacitors and silicon semiconductors to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package (see Package Outlines) is hermetically sealed and isolated from the internal circuits. The use of compressible thermal washers voids the warranty.
| SUPPLY VOLTAGE, +VS to VS |
300V |
| OUTPUT CURRENT, within SOA |
Internally Limited |
| POWER DISSIPATION, internal |
11.5W |
| INPUT VOLTAGE, differential |
±300V |
| INPUT VOLTAGE, common mode |
±VS |
| TEMPERATURE, pin solder-10 sex |
300 |
| TEMPERATURE, junction |
150 |
| TEMPERATURE RANGE, storage |
65 to 125 |
| OPERATING TEMPERATURE RANGE, case |
55 to 125 |
| Technical/Catalog Information | PA83 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 30 V/s |
| Gain Bandwidth Product | 5MHz |
| Current - Supply | 6mA |
| Current - Output/Channel | 75mA |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 300 V, ±15 V ~ 150 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 5pA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 1500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA83 PA83 598 1322 ND 5981322ND 598-1322 |
The PA83 is a high voltage operational amplifier designed for output voltage swings up to ±145V with a dual (±) supply or 290V with a single supply. Its input stage is protected against transient and steady state overvoltages up to and including the supply rails. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a zener diode fed by a FET constant current source. As a result, the PA83 features an unprecedented supply range and excellent supply rejection. The output stage is biased in the class A/B mode for linear operation. Internal phase compensation assures stability at all gain settings without need for external components. Fixed current limits protect these amplifiers against shorts to common at supply voltages up to 120V. For operation into inductive loads, two external flyback pulse protection diodes are recommended. However, a heatsink may be necessary to maintain the proper case temperature under normal operating conditions.
This hybrid circuit utilizes beryllia (BeO) substrates, thick (cermet) film resistors, ceramic capacitors and silicon semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible thermal isolation washers and/or improper mounting torque voids product warranty. Please see Application Note 1 "General Operating Considerations".
The PA83A is the A grade version, the PA83M/883 is the certified military grade version.
Applications:
| Output Current MAX (A) | Supply Voltage MAX (V) | Slew Rate TYP (V/s) | Standby Current MAX (mA) | Power Dissipation MAX (W) |
|---|---|---|---|---|
| 0.075 | 300 | 30 | 8.5 | 17.5 |
