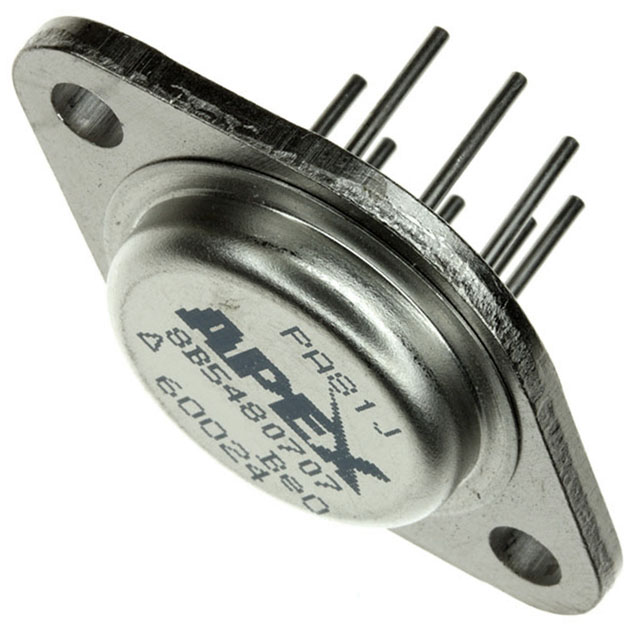

PA81J, PA81J/S, PA81J-S Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: TO-3
D/C: 02+
Description: OP AMP HV 150V .03A TO-3-8 CE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA81J
File Size: 75614 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA806C03
File Size: 76750 KB
Manufacturer: FUJI
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA806C03
File Size: 76750 KB
Manufacturer: FUJI
Download : Click here to Download
| Technical/Catalog Information | PA81J |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 20 V/s |
| Gain Bandwidth Product | 5MHz |
| Current - Supply | 6.5mA |
| Current - Output/Channel | 30mA |
| Voltage - Supply, Single/Dual (±) | 64 V ~ 150 V, ±32 V ~ 75 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 5pA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 1500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA81J PA81J 598 1321 ND 5981321ND 598-1321 |
The PA81J is a kind of high voltage operation amplifier. It provides an extremely wide range of supply capability with two overlapping products. All internal biasing is referenced to a zener diode. Besides, the hybrid circuit uses thick film resistors, ceramic capacitors and silicon semiconductors to maximize reliability, minimize size and give top performance. The typical applications include high impedance buffers up to ±40 V, electrostatic transducer & deflection, programmable power supplies to ±45 V, biochemistry stimulators and computer to vacuum tube interface.
There are some features as follows: (1)high output current: ±30 mA; (2)low bias current, low noise: FET input.
The following is about the absolute maximum ratings: (1)supply voltage, +VS to -VS: 200V; (2)output current, within SOA: internally limited; (3)power dissipation, internal: 11.5W; (4)input voltage, differential: ±150 V; (5)input voltage, common mode: ±VS; (6)temperature, pin solder-10 sec: 300; (7)temperature, junction: 150; (8)temperature range, storage: -65 to +125; (9)operating temperature range, case: -55 to +125.
