MFG:ON Semiconductor (VA) Category:Circuit Protection Package Cooled:3SC-75 D/C:0615
NZL5V6ATT1G, NZL5V6AXV3T1, NZL5V6AXV3T1G Datasheet download
Category: Circuit Protection
MFG: ON Semiconductor (VA)
Package Cooled: 3SC-75
D/C: 0615
Description: TVS ZENER DUAL 50W 5.6V SC89
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NZL5V6ATT1
File Size: 40225 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NZL5V6AXV3T1
File Size: 53307 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NZL5V6ATT1
File Size: 40225 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
| Technical/Catalog Information | NZL5V6ATT1G |
| Vendor | ON Semiconductor (VA) |
| Category | Circuit Protection |
| Package / Case | SC-75-3, SOT-416, EMT3 |
| Packaging | Cut Tape (CT) |
| Polarization | 2 Channel Array - Unidirectional |
| Power (Watts) | - |
| Voltage - Reverse Standoff (Typ) | 3V |
| Voltage - Breakdown | 5.3V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NZL5V6ATT1G NZL5V6ATT1G NZL5V6ATT1GOSCT ND NZL5V6ATT1GOSCTND NZL5V6ATT1GOSCT |
| Technical/Catalog Information | NZL5V6AXV3T1 |
| Vendor | ON Semiconductor (VA) |
| Category | Circuit Protection |
| Package / Case | SC-89-3 |
| Packaging | Cut Tape (CT) |
| Polarization | 2 Channel Array - Unidirectional |
| Power (Watts) | 50W |
| Voltage - Reverse Standoff (Typ) | 3V |
| Voltage - Breakdown | 5.3V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | NZL5V6AXV3T1 NZL5V6AXV3T1 NZL5V6AXV3T1OSCT ND NZL5V6AXV3T1OSCTND NZL5V6AXV3T1OSCT |
| Rating | Symbol | Value | Unit |
| Total Power Dissipation on FR-5 Board (Note 1) @ TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient |
PD RJA |
240 1.9 525 |
mW mW/°C °C/W |
| Junction and Storage Temperature Range | TJ, Tstg | -55 to +150 | °C |
| Lead Solder Temperature - Maximum (10 Second Duration) | TL | 260 | °C |

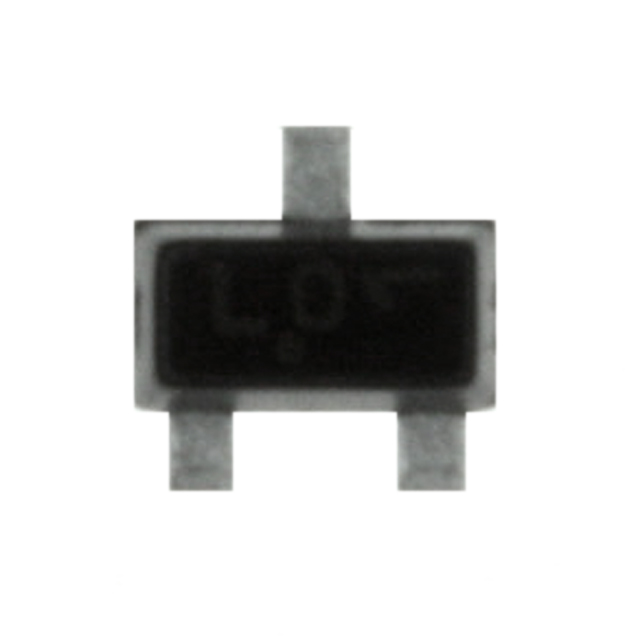

| Technical/Catalog Information | NZL5V6AXV3T1G |
| Vendor | ON Semiconductor (VA) |
| Category | Circuit Protection |
| Package / Case | SC-89-3 |
| Packaging | Digi-Reel? |
| Polarization | 2 Channel Array - Unidirectional |
| Power (Watts) | 50W |
| Voltage - Reverse Standoff (Typ) | 3V |
| Voltage - Breakdown | 5.3V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NZL5V6AXV3T1G NZL5V6AXV3T1G NZL5V6AXV3T1GOSDKR ND NZL5V6AXV3T1GOSDKRND NZL5V6AXV3T1GOSDKR |
