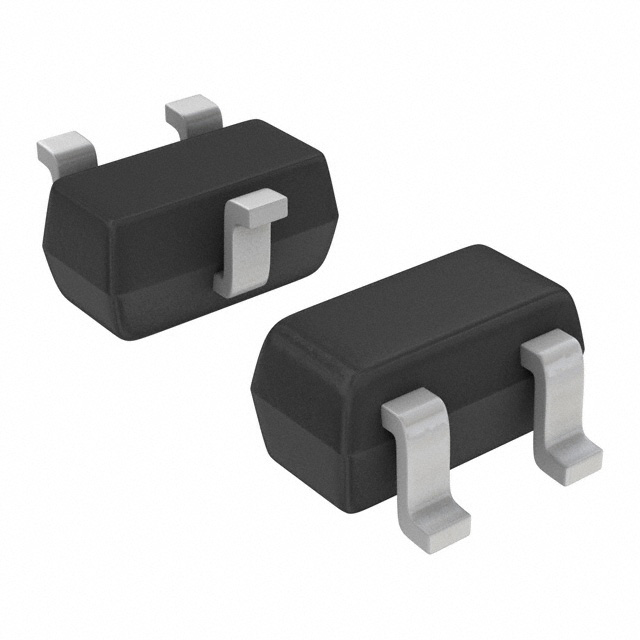

NZL5V6ATT1

Series: -
Mounting Type: Surface Mount
Power (Watts): -
Voltage - Reverse Standoff (Typ): 3V
Polarization: 2 Channel Array - Unidirectional
Packaging: Tape & Reel (TR)
Voltage - Breakdown: 5.3V
Package / Case: SC-75, SOT-416
Manufacturer: ON Semiconductor
Supplier Device Package: SC-75, SOT-416


Features:

• SC−75 Package Allows Two Separate Unidirectional Configurations
• Low Leakage < 1A @ 3 Volt
• Breakdown Voltage: 5.3−5.9 Volt @ 1 mA
• Low Capacitance (40 pF typical between terminals)
• ESD Protection Meeting IEC61000−4−2


Specifications

Parameter	Symbol	Value	Unit
Steady State Power − 1 Diode (Note 1)	PD	150	mW
Maximum Junction Temperature	TJmax	150	kV
Operating Junction and Storage Temperature Range	TJ Tstg	−55 to +150	°C
ESD Discharge IEC61000−4−2, Air Discharge IEC61000−4−2, Contact Discharge	VPP	±15 ±8	°C
Lead Solder Temperature (10 seconds duration)	TL	260	°C

Description

The NZL5V6ATT1 is designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment, and other applications. NZL5V6ATT1's dual junction common anode design protects four separate lines using only one package. These devices are ideal for situations where board space is at a premium.
