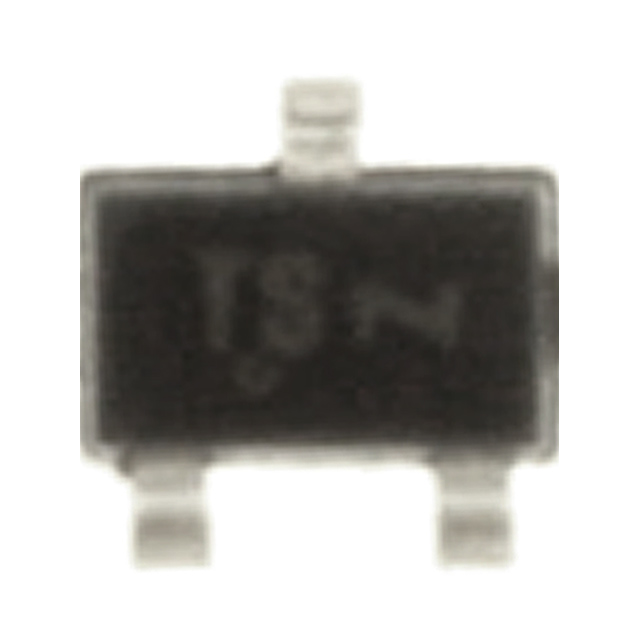

MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT323 D/C:05+
NTS2101PT1, NTS2101PT1G, NTS2ACB Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOT323
D/C: 05+
Description: MOSFET P-CH 8V 1.4A SOT-323
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NTS2101P
File Size: 118784 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NTS2101P
File Size: 118784 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NTS2101P
File Size: 118784 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
| Technical/Catalog Information | NTS2101PT1 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 8V |
| Current - Continuous Drain (Id) @ 25° C | 1.4A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 1A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 640pF @ 8V |
| Power - Max | 290mW |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 6.4nC @ 5V |
| Package / Case | SC-70-3, SOT-323-3 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | NTS2101PT1 NTS2101PT1 |
| Technical/Catalog Information | NTS2101PT1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 8V |
| Current - Continuous Drain (Id) @ 25° C | 1.4A |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 1A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 640pF @ 8V |
| Power - Max | 290mW |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 6.4nC @ 5V |
| Package / Case | SC-70-3, SOT-323-3 |
| FET Feature | Logic Level Gate |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NTS2101PT1G NTS2101PT1G NTS2101PT1GOSDKR ND NTS2101PT1GOSDKRND NTS2101PT1GOSDKR |
