MW6S010GNR, MW6S010N, MW6S010NR1

Table of contents:
Info of MW6S010GNR
Info of MW6S010N
Info of MW6S010NR1

MW6S010GNR, MW6S010N, MW6S010NR1 Selling Leads, Datasheet

MFG:Freescale Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SMD D/C:08+

MW6S010GNR, MW6S010N, MW6S010NR1 Datasheet download

Five Points

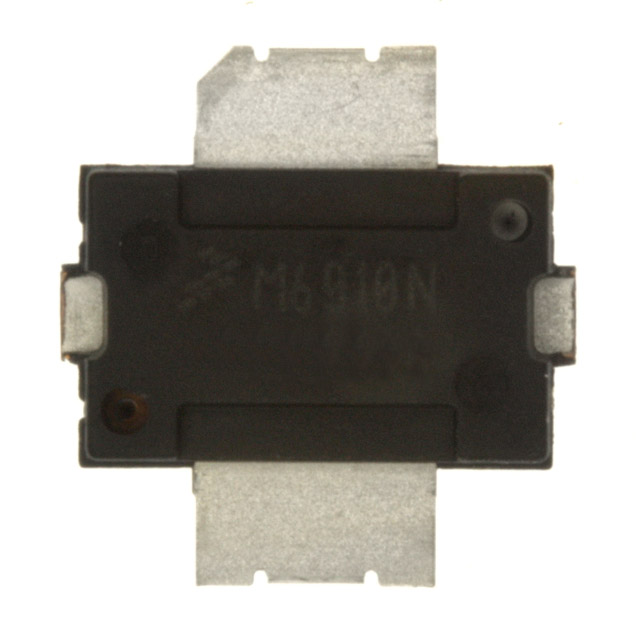

Part Number: MW6S010NR1

Category: Discrete Semiconductor Products

MFG: Freescale Semiconductor (VA)

Package Cooled: SMD

D/C: 08+

Description: MOSFET RF N-CH 28V 10W TO-270-2

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MW6S010NR1 Parameters

Technical/Catalog Information	MW6S010NR1
Vendor	Freescale Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	28V
Current Rating	125mA
Package / Case	TO-270-2
Packaging	Cut Tape (CT)
Drawing Number	375; 1265-08; NR; 2
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MW6S010NR1 MW6S010NR1 MW6S010NR1CT ND MW6S010NR1CTND MW6S010NR1CT

MW6S010NR1 General Description

Designed for Class A or Class AB base station applications with frequencies up to 1500 MHz. Suitable for analog and digital modulation and multicarrier amplifier applications.

MW6S010NR1 Maximum Ratings

Rating	Symbol	Value	Unit
Drain-Source Voltage	V_DSS	-0.5. +68	Vdc
Gate-Source Voltage	V_GS	-0.5, +12	Vdc
Total Device Dissipation @ T_C = 25 Derate above 25	P_D	61.4 0.35	W W/
Storage Temperature Range	T_stg	-65 to +175
Operating Junction Temperature	T_J	200

MW6S010NR1 Features

• Typical Two-Tone Performance @ 960 MHz, V_DD = 28 Volts, I_DQ =
      125 mA, P_out = 10 Watts PEP
      Power Gain - 18 dB
      Drain Efficiency - 32%
      IMD - -37 dBc
• Capable of Handling 10:1 VSWR, @ 28 Vdc, 960 MHz, 10 Watts CW Output Power
• Characterized with Series Equivalent Large-Signal Impedance Parameters
• On-Chip RF Feedback for Broadband Stability
• Qualified Up to a Maximum of 32 VDD Operation
• Integrated ESD Protection
• N Suffix Indicates Lead-Free Terminations
• 200 Capable Plastic Package
• In Tape and Reel. R1 Suffix = 500 Units per 24 mm, 13 inch Reel.
