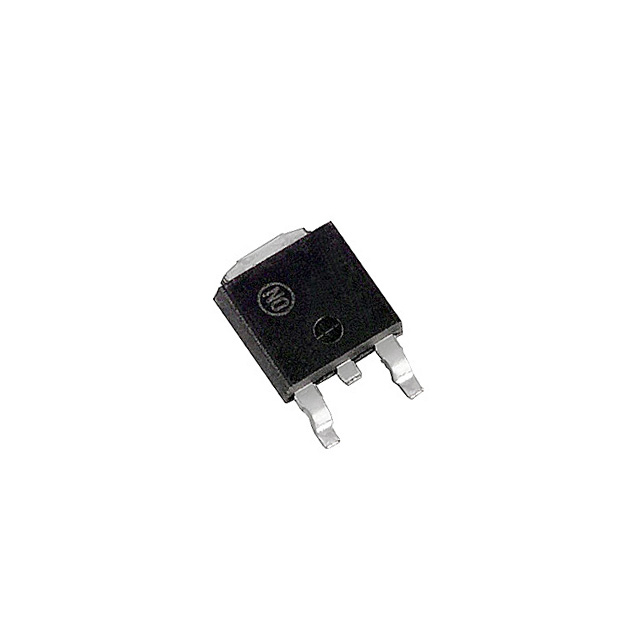

MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:DPAK 4 LEAD Single Gauge Surface Mount D/C:07+(pb-free)
MSRD620CTG, MSRD620CTT4, MSRD620CTT4G Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: DPAK 4 LEAD Single Gauge Surface Mount
D/C: 07+(pb-free)
Description: DIODE ULTRA FAST 200V 3A DPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MSRD620CTG
File Size: 75158 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSRD620CTT4
File Size: 75158 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MSRD620CTT4G
File Size: 75158 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | MSRD620CTG |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) (per Diode) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 3A |
| Current - Reverse Leakage @ Vr | 5A @ 200V |
| Reverse Recovery Time (trr) | 55ns |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DPak,SC-63,TO-252 (2 leads+tab) |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MSRD620CTG MSRD620CTG |
| Technical/Catalog Information | MSRD620CTT4G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) (per Diode) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 3A |
| Current - Reverse Leakage @ Vr | 5A @ 200V |
| Reverse Recovery Time (trr) | 55ns |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DPak,SC-63,TO-252 (2 leads+tab) |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MSRD620CTT4G MSRD620CTT4G MSRD620CTT4GOSCT ND MSRD620CTT4GOSCTND MSRD620CTT4GOSCT |
