MJ3000, MJ3001, MJ300A2F55

MJ3000, MJ3001, MJ300A2F55 Selling Leads, Datasheet

MFG:STMicroelectronics  Category:Discrete Semiconductor Products  Package Cooled:N/A  D/C:1253

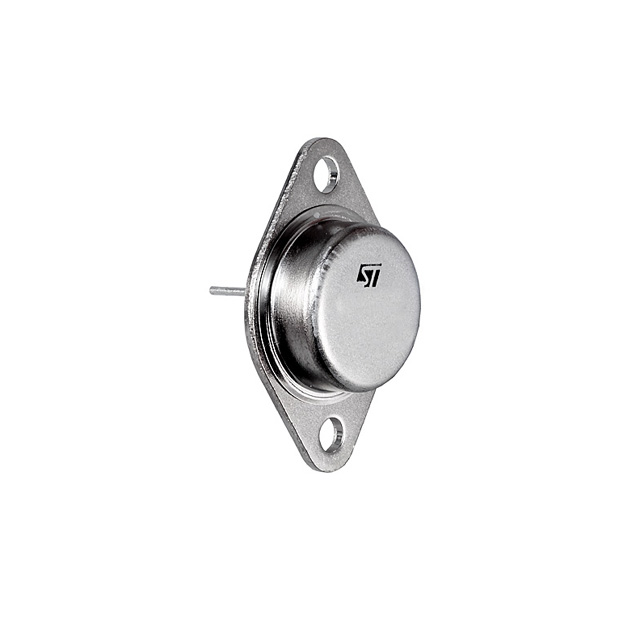

MJ3001 Picture

MJ3000, MJ3001, MJ300A2F55 Datasheet download

Five Points

Part Number: MJ3001

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: N/A

D/C: 1253

Description: TRANS DARL NPN 80V 10A TO-3






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

MJ3000 Suppliers

More MJ3000 Suppliers

Select All

About MJ3000

PDF/DataSheet Download

Datasheet: MJ3000

File Size: 135332 KB

Manufacturer: MOTOROLA [Motorola, Inc]

Download : Click here to Download

Related PDF Download

Related Part Number

MJ3001 Suppliers

More MJ3001 Suppliers

Select All

About MJ3001

PDF/DataSheet Download

Datasheet: MJ3001

File Size: 135332 KB

Manufacturer: MOTOROLA [Motorola, Inc]

Download : Click here to Download

Related PDF Download

Related Part Number

MJ300A2F55 Suppliers

More MJ300A2F55 Suppliers

Select All

About MJ3000

PDF/DataSheet Download

Datasheet: MJ3000

File Size: 135332 KB

Manufacturer: MOTOROLA [Motorola, Inc]

Download : Click here to Download

Related PDF Download

Related Part Number

MJ3000 General Description

·With TO-3 package
·DARLINGTON
·High DC current gain
·Complement to type MJ2500/2501

MJ3000 Maximum Ratings

SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage MJ3000 Open emitter 60 V
MJ3001 80
VCEO Collector-emitter voltage MJ3000 Open base 60 V
MJ3001 80
VEBO Emitter-base voltage Open collector 5 V
IC Collector current   10 A
IB Base current   0.2 A
PD Total power dissipation TC=25 150 W
Tj Junction temperature   200
Tstg Storage temperature   -55~200

MJ3000 Typical Application

·For use as output devices in complementary general purpose amplifier applications

MJ3001 Parameters

Technical/Catalog InformationMJ3001
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Darlington
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)10A
Power - Max150W
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 5A, 3V
Vce Saturation (Max) @ Ib, Ic-
Frequency - Transition-
Current - Collector Cutoff (Max)1mA
Mounting TypeChassis Mount
Package / CaseTO-204, TO-3
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MJ3001
MJ3001
497 2393 ND
4972393ND
497-2393

MJ3001 General Description

The MJ2501 is a silicon epitaxial-base PNP power transistors in monolithic Darlington configuration and are mounted in Jedec TO-3 metal case. They are intented for use in power linear and switching applications.

The complementary NPN type is the MJ3001.

MJ3001 Maximum Ratings

Symbol
Parameter
Value
Unit
PNP
MJ2501
NPN
MJ3001
VCBO
Collector-base Voltage (IE = 0)
80
V
VCEO
Collector-emitter Voltage (IB = 0)
80
V
VEBO
Emitter-base Voltage (IC = 0)
5
V
IC
Collector Current
10
A
IB
Base Current
0.2
A
Ptot
Total Dissipation at Tc £ 25 oC
150
W
Tstg
Storage Temperature
-65 to 200
Tj
Max. Operating Junction Temperature
200
