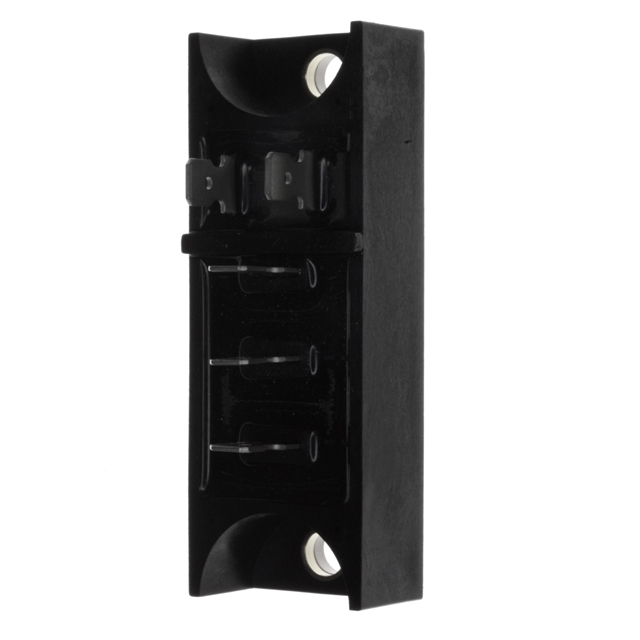

Powerex Three-Phase Diode Bridge Modules are designed for use in three phase bridge applications. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors).
ME700803 Maximum Ratings
Characteristics
Symbol
ME700803
Units
Peak Reverse Blocking Voltage
VRRM
800
Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
VRSM
900
Volts
DC Reverse Blocking Voltage
VR(DC)
640
Volts
DC Output Current, TC = 103°C
IO
30
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
IFSM
400
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz)
IFSM
365
Amperes
I2t (for Fusing), 8.3 milliseconds
I2t
667
A2sec
Storage Temperature
TSTG
-40 to 125
°C
Operating Temperature
Tj
-40 to 150
°C
Maximum Mounting Torque M6 Mounting Screw
-
26
in.-lb.
Module Weight (Typical)
-
120
Grams
V Isolation
VRMS
2000
Volts
ME700803 Features
·Isolated Mounting ·Planar Chips ·UL Recognized
ME700803 Typical Application
·Inverters ·DC Power Supplies ·AC Motor Control Front End
ME701202 Parameters
Technical/Catalog Information
ME701202
Vendor
Powerex Inc
Category
Discrete Semiconductor Products
Diode Type
Three Phase
Package / Case
Module
Packaging
Bulk
Reverse Recovery Time (trr)
-
Speed
Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)
20A
Voltage - Peak Reverse (Max)
1200V
Mounting Type
Chassis Mount
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
ME701202 ME701202
ME701202 General Description
Powerex Three-Phase Diode Bridge Modules are designed for use in three phase bridge applications. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors).
ME701202 Maximum Ratings
Characteristics
Symbol
ME701602
Units
Peak Reverse Blocking Voltage
VRRM
1600
Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
VRSM
1700
Volts
DC Reverse Blocking Voltage
VR(DC)
1280
Volts
DC Output Current, TC = 103°C
IO
20
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
IFSM
200
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz)
IFSM
180
Amperes
I2t (for Fusing), 8.3 milliseconds
I2t
167
A2sec
Storage Temperature
TSTG
-40 to 125
°C
Operating Temperature
Tj
-40 to 150
°C
Maximum Mounting Torque M6 Mounting Screw
-
26
in.-lb.
Module Weight (Typical)
-
117
Grams
V Isolation
VRMS
2500
Volts
ME701202 Features
·Isolated Mounting ·Planar Chips ·UL Recognized
ME701202 Typical Application
·Inverters ·DC Power Supplies ·AC Motor Control Front End
ME701203 Parameters
Technical/Catalog Information
ME701203
Vendor
Powerex Inc
Category
Discrete Semiconductor Products
Diode Type
Three Phase
Package / Case
Module
Packaging
Bulk
Reverse Recovery Time (trr)
-
Speed
Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)
30A
Voltage - Peak Reverse (Max)
1200V
Mounting Type
Chassis Mount
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
ME701203 ME701203
ME701203 General Description
Powerex Three-Phase Diode Bridge Modules are designed for use in three-phase bridge application. The modules are isolated consisting of six rectifier diodes. These ME70 Modules have been tested and recognized by Underwriters Laboratories (QQQX2 Power Switching Semiconductors).
ME701203 Maximum Ratings
Characteristics
Symbol
ME701603
Units
Peak Reverse Blocking Voltage
VRRM
1600
Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
VRSM
1700
Volts
DC Reverse Blocking Voltage
VR(DC)
1280
Volts
DC Output Current, TC = 103°C
IO
30
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
IFSM
300
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz)
IFSM
275
Amperes
I2t (for Fusing), 8.3 milliseconds
I2t
375
A2sec
Storage Temperature
TSTG
-40 to 125
°C
Operating Temperature
Tj
-40 to 125
°C
Maximum Mounting Torque M6 Mounting Screw
-
26
in.-lb.
Module Weight (Typical)
-
120
Grams
V Isolation
VRMS
2500
Volts
ME701203 Features
·Isolated Mounting ·Planar Chips ·UL Recognized
ME701203 Typical Application
·Inverters ·DC Power Supplies ·AC Motor Control Front End
