MFG:Littelfuse / Teccor Brand Thyristors Category:Discrete Semiconductor Products Package Cooled:SMD D/C:09+
K2400G, K2400S, K2401F1 Datasheet download
Category: Discrete Semiconductor Products
MFG: Littelfuse / Teccor Brand Thyristors
Package Cooled: SMD
D/C: 09+
Description: SIDAC 240V TO202
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: K2400G
File Size: 275456 KB
Manufacturer: TECCOR [Teccor Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: K2400S
File Size: 275456 KB
Manufacturer: TECCOR [Teccor Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: K2401F1
File Size: 275456 KB
Manufacturer: TECCOR [Teccor Electronics]
Download : Click here to Download

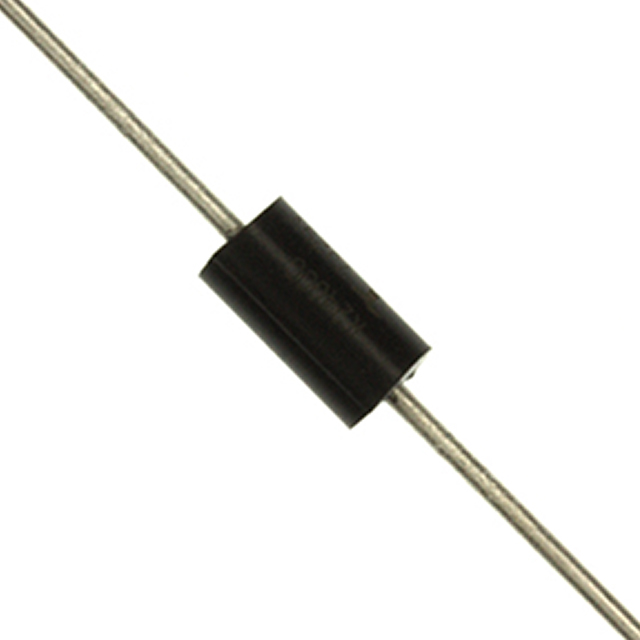

| Technical/Catalog Information | K2400G |
| Vendor | Littelfuse / Teccor Brand Thyristors |
| Category | Discrete Semiconductor Products |
| Package / Case | DO-15X, Axial |
| Packaging | Bulk |
| Voltage - Breakover | 220 ~ 250V |
| Current - Breakover | 10A |
| Current - Peak Output | 1A |
| Holding Current (Ih) | * |
| Current - Hold (Ih) (Max) | 60mA |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | K2400G K2400G |
The K2400G is a Sidac which is a kind of silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. It is available in DO-15X package. The typical applications include high voltage lamp ignitors, natural gas ignitors, gas oil ignitors, high voltage power supplies, xenon ignitors, over voltage protector, pulse generators, fluorescent lighting ignitors and HID lighting ignitors.
There are some features as follows: (1) AC circuit oriented; (2) glass-passivated junctions; (3) high surge current capability.
The following is some general notes: (1): storage temperature range (TS) is -65 to +150; (2): junction temperature range (TJ) is from -40 to +125; (3) lead solder temperature is a maximum of +230 for 10 seconds maximum;1/16" (1.59mm) from case.
| Technical/Catalog Information | K2400S |
| Vendor | Littelfuse / Teccor Brand Thyristors |
| Category | Discrete Semiconductor Products |
| Package / Case | DO-214 |
| Packaging | Bulk |
| Voltage - Breakover | 220 ~ 250V |
| Current - Breakover | 10A |
| Current - Peak Output | 1A |
| Holding Current (Ih) | * |
| Current - Hold (Ih) (Max) | 60mA |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | K2400S K2400S |
| Technical/Catalog Information | K2401F1 |
| Vendor | Littelfuse / Teccor Brand Thyristors |
| Category | Discrete Semiconductor Products |
| Package / Case | TO-202 |
| Packaging | Bulk |
| Voltage - Breakover | 220 ~ 250V |
| Current - Breakover | 10A |
| Current - Peak Output | 1A |
| Holding Current (Ih) | * |
| Current - Hold (Ih) (Max) | 60mA |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | K2401F1 K2401F1 |
