IXGH50N60A, IXGH50N60AS, IXGH50N60B

Table of contents:
Info of IXGH50N60A
Info of IXGH50N60AS
Info of IXGH50N60B

IXGH50N60A, IXGH50N60AS, IXGH50N60B Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:09+ D/C:TO

IXGH50N60A, IXGH50N60AS, IXGH50N60B Datasheet download

Five Points

Part Number: IXGH50N60A

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: 09+

D/C: TO

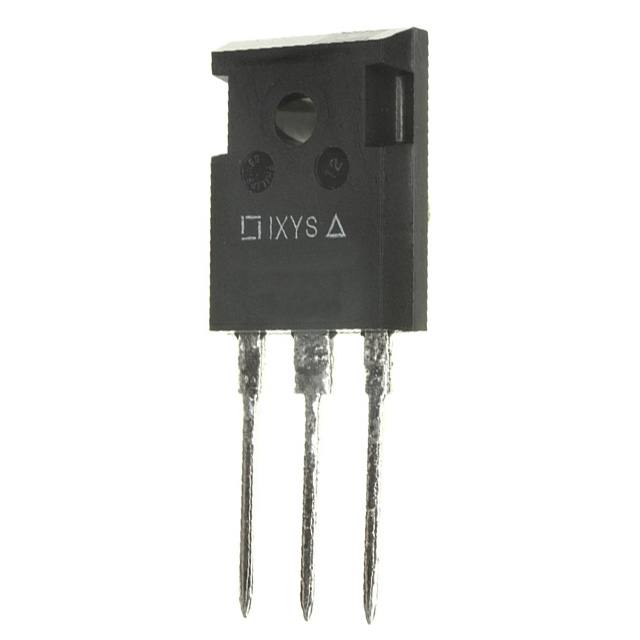

Description: IGBT HIPERFAST 600V 75A TO-247AD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXGH50N60A Parameters

Technical/Catalog Information	IXGH50N60A
Vendor	IXYS
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	75A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 50A
Power - Max	250W
Mounting Type	Through Hole
Package / Case	TO-247AD
Packaging	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXGH50N60A IXGH50N60A

IXGH50N60A Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_CES V_CGR	T_J= 25 to 150 T_J = 25 to 150; R = 1 MΩ	600 600	V V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_C25 I_C90I_CM	T_C= 25 T_C = 90 T_C = 25, 1 ms	75 50 200	A A A
SSOA (RBSOA)	V_GE = 15 V, T_VJ= 125, R_G = 10 Ω Clamped inductive load, L = 30 µH	I_CM = 100@ 0.8 V_CES	A
P_C	T_C= 25	250	W
T_J T_JM T_stg	-55 ... +150 150 -55 ... +150
Maximum Lead and Tab temperature for soldering 1.6 mm (0.062 in.) from case for 10 s		300
Md	Mounting torque, TO-247 AD	1.13/10	Nm/lb.in.
Weight	TO-247 SMD TO-247 AD	4 6	g g

IXGH50N60A Features

International standard packagesJEDEC TO-247 SMD surfacemountable and JEDEC TO-247 AD
High frequency IGBT
High current handling capability
2nd generation HDMOSTM process
MOS Gate turn-on
- drive simplicity

IXGH50N60A Typical Application

AC motor speed control
DC servo and robot drives
DC choppers
Uninterruptible power supplies (UPS)
Switch-mode and resonant-modepower supplies

IXGH50N60B Parameters

Technical/Catalog Information	IXGH50N60B
Vendor	IXYS
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	75A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 50A
Power - Max	300W
Mounting Type	Through Hole
Package / Case	TO-247AD
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXGH50N60B IXGH50N60B

IXGH50N60B Maximum Ratings

Symbol	Test Conditions	Maximum	Ratings
V_CES V_CGR	T_J= 25 to 150 T _J= 25 to 150; R_GE = 1 MΩ	600 600	V V
V_GES V_GEM	Continuous Transient	±20 ±30	V V
I_C25 _^IC90 I_CM	T_C = 25 T_C = 90 T_C= 25, 1 ms	75 50 200	A A A
SSOA (RBSOA)	VGE = 15 V, TVJ= 125, RG = 10 Ω Clamped inductive load	ICM = 100@ 0.8 V_CES	A
P_C	T_C= 25	300	W
T_J T_JM T_stg	-55 ... +150 150 -55 ... +150
Md	Mounting torque	_{^{1.13/10 0.9/6}}	Nm/lb.in Nm/lb.in.
Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s	300
Weight	TO-247 TO-264 TO-268	6 10 4	g g g

IXGH50N60B Features

• International standard packages
• High frequency IGBT
• Latest generation HDMOSTM process
• High current handling capability
• MOS Gate turn-on
- drive simplicity

IXGH50N60B Typical Application

• AC motor speed control
• DC servo and robot drives
• DC choppers
• Uninterruptible power supplies (UPS)
• Switch-mode and resonant-modepower supplies
