Capable of start up over full temperature range. See Note 1.

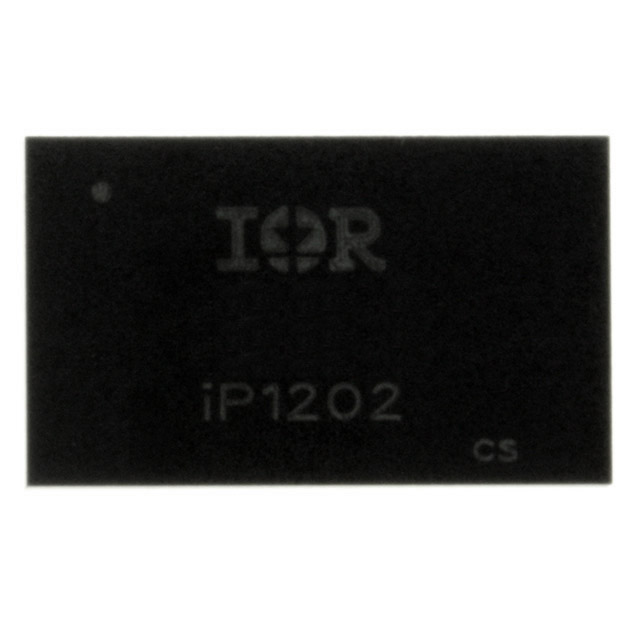

IP1202PBF Features
• 5.5V to 13.2V input voltage • 0.8V to 5V output voltage • 2 Phase Synchronous Buck Power Block • 180 out of phase operation • Single or Dual output capability • Dual 15A maximum load capability • Single 2 phase 30A maximum load capability • 200-400kHz per channel nominal switching frequency • Over Current Hiccup or Over Current Latch • External Synchronization Capable • Overvoltage protection • Individual soft start per outputs • Over Temperature protection • Internal features minimize layout sensitivity * • Ease of layout • Very small outline 15.5mm x 9.25mm x 2.6mm
IP1202TR Parameters
Technical/Catalog Information
IP1202TR
Vendor
International Rectifier
Category
Integrated Circuits (ICs)
Type
Step-Down (Buck)
Number of Outputs
2
Voltage - Input
5.5 ~ 13.2 V
Voltage - Output
0.8 ~ 5 V
Current - Output
30A
Power - Output
7W
Package / Case
198-BGA (161 bumps)
Packaging
Tape & Reel (TR)
Internal Switch(s)
Yes
Synchronous
Yes
Rds (On)
-
Operating Temperature
-40°C ~ 125°C
Frequency - Switching
200kHz ~ 400kHz
Lead Free Status
Contains Lead
RoHS Status
RoHS Non-Compliant
Other Names
IP1202TR IP1202TR
IP1203PBF Parameters
Technical/Catalog Information
IP1203PBF
Vendor
International Rectifier
Category
Integrated Circuits (ICs)
Type
Step-Down (Buck)
Number of Outputs
1
Voltage - Input
5.5 ~ 13.2 V
Voltage - Output
0.8 ~ 8 V
Current - Output
15A
Power - Output
3.75W
Package / Case
24-LGA
Packaging
Bulk
Internal Switch(s)
Yes
Synchronous
Yes
Rds (On)
-
Operating Temperature
-10°C ~ 125°C
Frequency - Switching
200kHz ~ 400kHz
Drawing Number
*
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IP1203PBF IP1203PBF
IP1203PBF Maximum Ratings
Parameter
Symbol
Min
Typ
Max
Units
Conditions
VIN
VIN
-0.3
15
V
Feedback
FB
-0.3
6
Output Overvoltage Sense
FBS
-0.3
6
PGOOD
-0.3
15
Soft Start
SS
-0.3
6
SYNC
-0.3
6
Output RMS Current
IoutVSW
15
A
See Fig.3
Block Temperature
TBLK
-10
125
IP1203PBF Features
• 5.5V to 13.2V Input Voltage • 0.8V to 8V Output Voltage • 15A Maximum Load Capability • 200-400kHz Nominal Switching Frequency • Over Current Hiccup • External Synchronization Capable • Overvoltage Protection • Over Temperature Protection • Internal Features Minimize Layout Sensitivity • Very Small Outline 9mm x 9mm x 2.3mm
